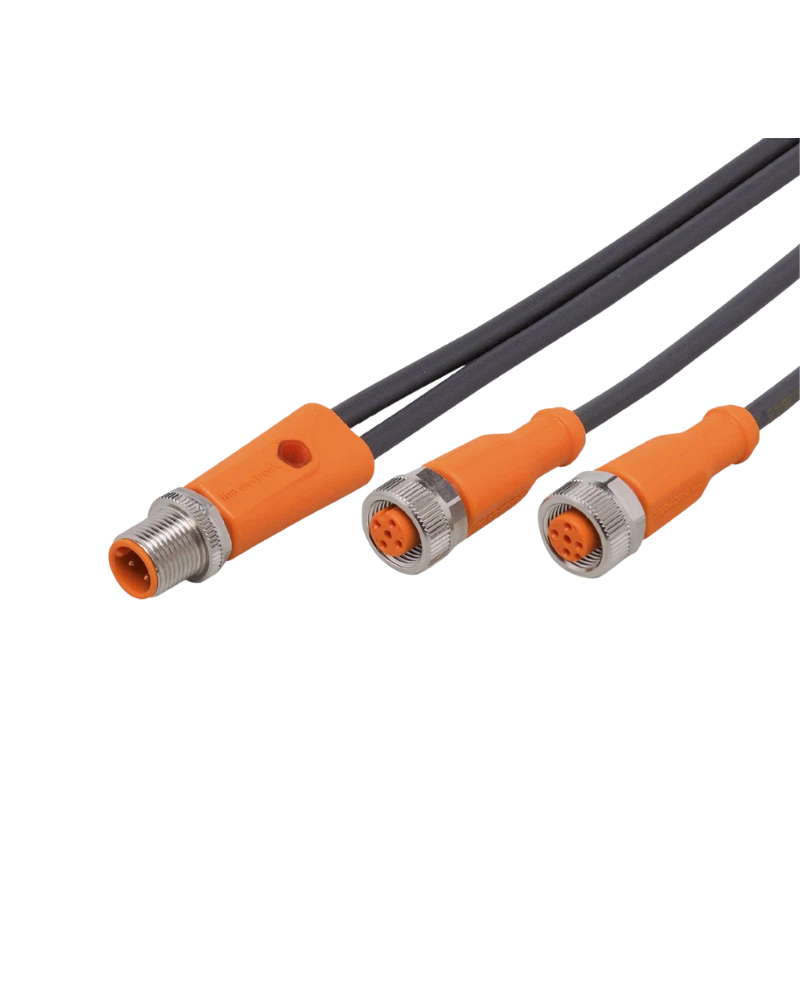

IFM EVC432 is a 2 m Y connection cable designed for dependable signal distribution between M12 automation components. It features one M12 plug and two M12 sockets with gold-plated contacts. The PUR cable provides flexibility, high environmental protection and reliable performance in industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Practical Signal Distribution
EVC432 allows one M12 connection to interface with two M12 connections. This helps simplify wiring between multiple automation components. Gold-plated contacts support stable electrical connections. It is suitable for industrial sensor and actuator systems.
Durable PUR Cable
The 2 m PUR cable provides flexibility for machine installation. It is halogen-free and silicone-free for industrial applications. The robust construction supports use around oils and coolants. Its flexible design helps simplify cable routing.
Protection Against Harsh Conditions
The cable offers IP65, IP67, IP68 and IP69K protection. FKM sealing helps protect the connector interfaces from moisture and contamination. The locking mechanism improves resistance to vibration and shock. This supports reliable operation in demanding machinery.
Dynamic Machine Compatibility
EVC432 is suitable for drag-chain applications and repeated cable movement. It supports more than 5 million bending cycles. The cable can operate with a minimum bending radius of 10 times its diameter. This supports automated machine applications.
2 m PUR cable
M12 plug and 2 × M12 sockets
4 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
FKM sealing
Oil and coolant resistant
Drag-chain suitable
High bending-cycle performance
Industrial automation
Factory automation
Sensor and actuator distribution
Machine tools
Production machinery
Robotic systems
Industrial control equipment
Signal distribution networks
| Specification | Details |
|---|---|
| Product Code | EVC432 |
| Product Type | Y Connection Cable |
| Order Code | YDOGH040MSS0002H04STGH050MSS |
| Manufacturer | IFM |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.3 mm |
| Conductor | 4 × 0.34 mm² |
| Design | 2-way Y connection |
| Plug | 1 × M12, straight |
| Socket | 2 × M12, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Number of Splitter Ports | 2 |
| Pack Quantity | 1 pc |
