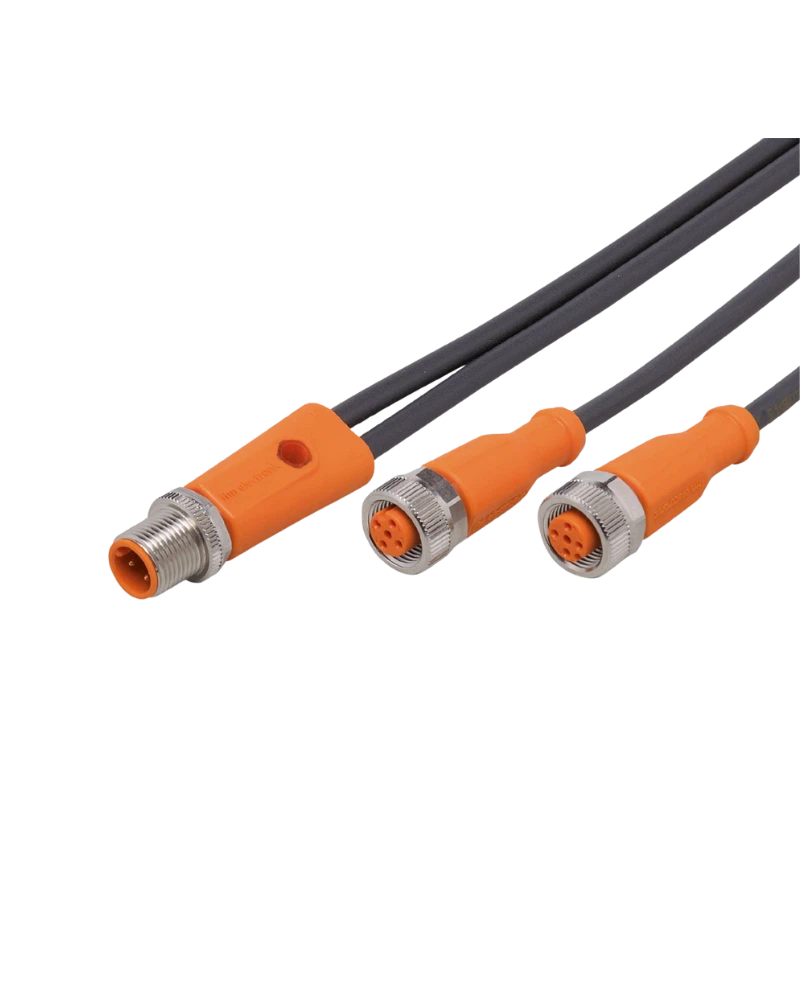

IFM EVC431 is a 1 m Y connection cable designed to connect one M12 device with two M12 connections in industrial automation systems. It uses a durable PUR cable with gold-plated contacts and FKM sealing. The cable is suitable for machine tools, factory automation and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Efficient Y Connection
EVC431 allows one connection point to interface with two M12 connections. This provides a practical solution for distributing signals within industrial automation systems. Gold-plated contacts support reliable electrical connectivity. The design helps simplify machine wiring.
Durable Industrial Construction
The 1 m PUR cable provides flexibility and mechanical durability. Its halogen-free and silicone-free construction is suitable for industrial installations. The connectors are designed to resist vibration and shock. This supports dependable performance during continuous machine operation.
High Protection Rating
EVC431 provides IP65, IP67, IP68 and IP69K protection. FKM sealing helps protect the connection against moisture and contamination. The robust connector construction supports use in demanding environments. It is suitable for machinery exposed to oils and coolants.
Suitable for Dynamic Applications
The cable supports drag-chain applications and repeated movement. It provides more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for automated and moving equipment.
1 m PUR cable
M12 plug with 2 × M12 sockets
4 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
FKM sealing
Oil and coolant resistant
Drag-chain compatible
Vibration and shock resistant
Industrial automation
Factory automation
Sensor signal distribution
Machine tools
Automated production equipment
Robotic machinery
Industrial control systems
Signal distribution applications
| Specification | Details |
|---|---|
| Product Code | EVC431 |
| Product Type | Y Connection Cable |
| Order Code | YDOGH040MSS0001H04STGH050MSS |
| Manufacturer | IFM |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.3 mm |
| Conductor | 4 × 0.34 mm² |
| Design | 2-way Y connection |
| Plug | 1 × M12, straight |
| Socket | 2 × M12, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Number of Splitter Ports | 2 |
| Weight | Approx. 93.4 g |
| Pack Quantity | 1 pc |
