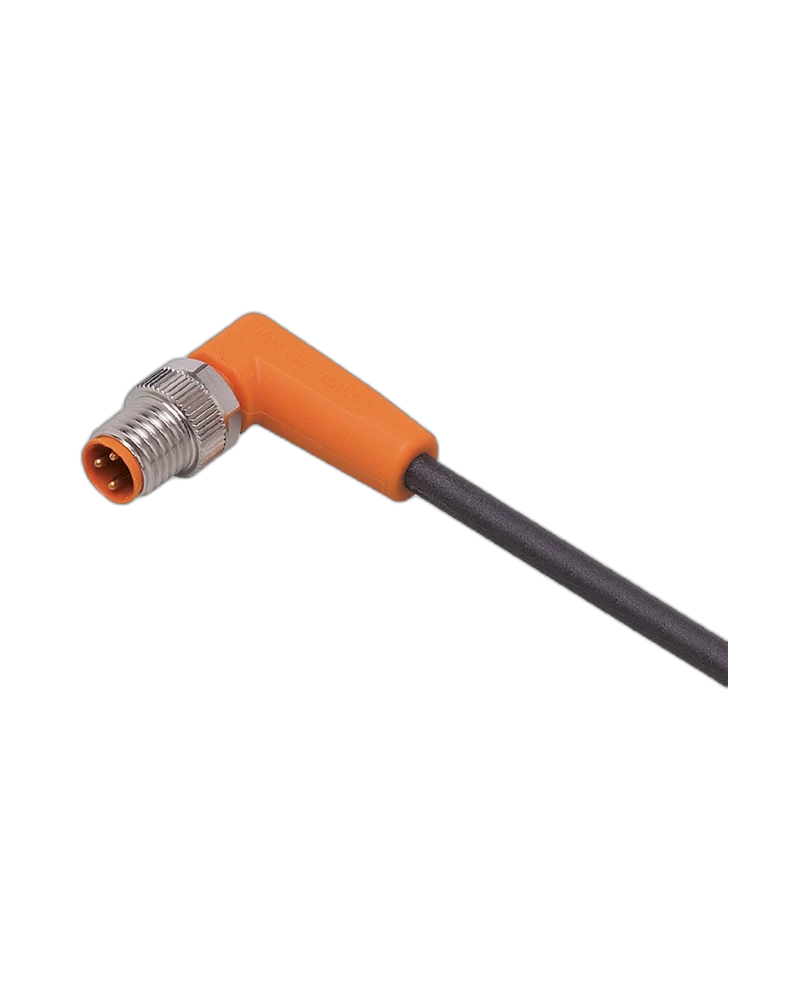

IFM EVC429 is a 5 m connecting cable with an angled M8 plug for industrial automation applications. It uses a flexible PUR cable with gold-plated contacts for dependable electrical connectivity. The cable is halogen-free, silicone-free and designed to withstand demanding industrial operating conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC429 provides a dependable connection between compatible industrial sensors and automation equipment. Its angled M8 plug helps simplify cable routing around machinery. Gold-plated contacts support reliable electrical performance. The connector is designed for industrial automation applications.
Flexible 5 m Cable
The 5 m cable provides extended reach for machine installations. PUR construction offers flexibility and durability for industrial use. The 3 × 0.25 mm² conductor arrangement supports dependable signal transmission. The black cable sheath provides a practical industrial finish.
Protection for Harsh Environments
EVC429 offers IP65, IP67, IP68 and IP69K protection. It is designed to withstand exposure to oils and coolants. The locking nut helps maintain a secure connection under vibration and shock. This makes it suitable for demanding machine environments.
Suitable for Cable Chains
The cable can be used in drag-chain applications involving repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This helps provide reliable operation in automated machinery.
5 m PUR cable
M8 angled plug
A-coded connector
3 × 0.25 mm² conductors
Gold-plated contacts
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
High bending-cycle capability
Industrial automation
Factory automation
Machine tools
Sensor connections
Automated production machinery
Robotic equipment
Industrial monitoring systems
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EVC429 |
| Product Type | Connecting Cable with Plug |
| Order Code | ASTAF030MSS0005H03 |
| Manufacturer | IFM |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Connector | M8 plug |
| Connector Design | Angled |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 109 g |
| Pack Quantity | 1 pc |
