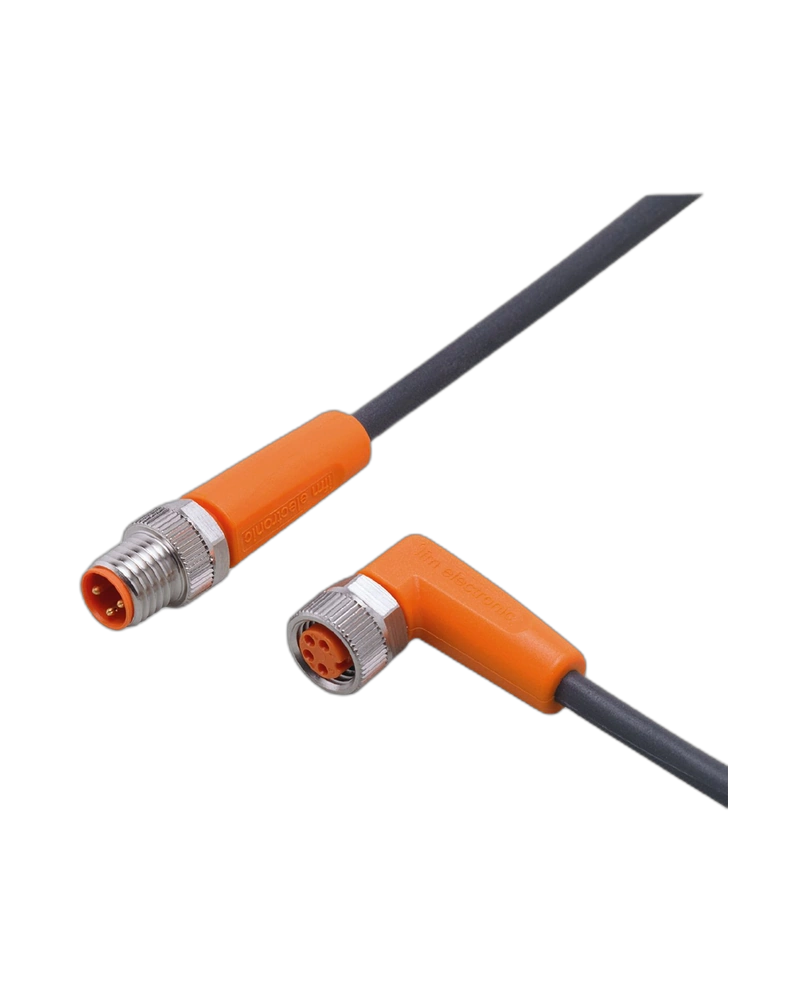

IFM EVC428 is a compact 1.2 m connection cable designed for reliable connections between industrial automation components. It features M8 connectors with a straight plug and angled socket for convenient machine installation. The PUR cable offers flexibility, durability and resistance to demanding industrial conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact Connection Solution
EVC428 provides a convenient connection between compatible sensors and automation components. Its M8 connector configuration supports reliable signal transmission. The angled socket can simplify cable routing in confined machine spaces. It is suitable for equipment-level automation connections.
Durable PUR Cable
The 1.2 m PUR cable is designed for industrial use. Its flexible construction supports convenient routing around machinery and control equipment. The cable is halogen-free and suitable for demanding environments. Its compact length is ideal for short-distance connections.
Reliable Industrial Protection
EVC428 is designed for harsh industrial environments involving dust, moisture, oils and coolants. The connector construction provides reliable sealing. The locking arrangement helps resist vibration and shock during machine operation. This supports stable long-term connectivity.
Designed for Dynamic Machinery
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter helps reduce mechanical stress. This makes it suitable for automated machinery.
1.2 m PUR cable
M8 straight plug
M8 angled socket
3 × 0.25 mm² conductors
Gold-plated contacts
Halogen-free construction
Silicone-free design
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
High bending-cycle capability
Industrial automation
Factory machinery
Machine tools
Industrial sensor connections
Automated production equipment
Control and monitoring systems
Robotic equipment
Compact machine installations
| Specification | Details |
|---|---|
| Product Code | EVC428 |
| Product Type | Connection Cable |
| Order Code | VDOAF040MSS01,2H03STGF030MSS |
| Manufacturer | IFM |
| Cable Length | 1.2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Connector Configuration | M8 plug / M8 socket |
| Plug Design | M8 straight |
| Socket Design | M8 angled |
| Coding | A |
| Contacts | Gold-plated |
| Housing Material | TPU, orange |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 44 g |
| Pack Quantity | 1 pc |
