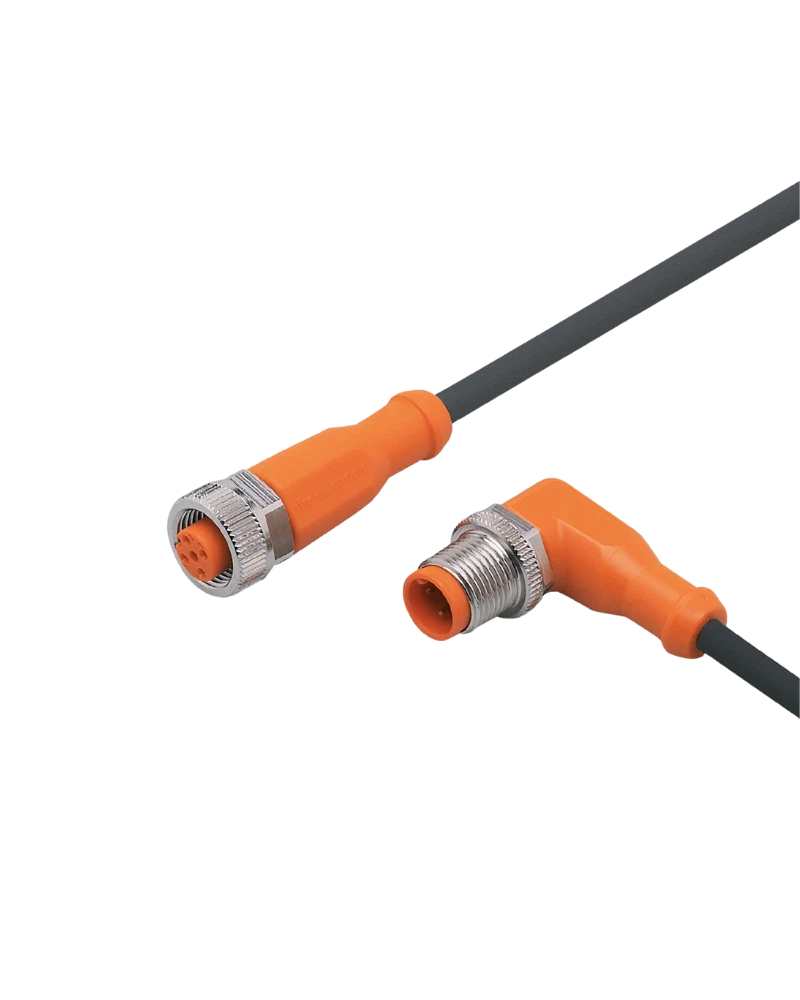

IFM EVC425 is a 2.5 m M12 connection cable designed for dependable connectivity in industrial automation systems. It combines an angled M12 plug with a straight M12 socket and gold-plated contacts. The PUR cable is halogen-free, silicone-free and suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connectivity
EVC425 provides a secure connection between sensors, actuators and automation components. The M12 plug and socket configuration supports dependable signal transmission. Gold-plated contacts help maintain stable electrical performance. It is suitable for continuous factory automation applications.
Flexible Cable Construction
The 2.5 m PUR cable provides a practical length for equipment-level connections. Its flexible construction allows convenient cable routing around machinery. The cable is designed for industrial environments involving oils and coolants. The black sheath provides a durable industrial solution.
High Environmental Protection
The connection cable provides IP65, IP67, IP68 and IP69K protection. This helps protect the connection against dust, water and demanding cleaning conditions. FKM/Viton sealing supports dependable connector protection. The locking system helps resist vibration and shock.
Suitable for Dynamic Applications
EVC425 is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for automated machinery and moving equipment.
2.5 m PUR cable
M12 angled plug
M12 straight socket
5 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free construction
Silicone-free design
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
High bending-cycle performance
Industrial automation systems
Factory automation
Machine tools
Sensor and actuator connections
Automated production equipment
Robotic machinery
Industrial control systems
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EVC425 |
| Product Type | Connection Cable |
| Order Code | VDOGH050MSS02,5H05STAH050MSS |
| Manufacturer | IFM |
| Cable Length | 2.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.9 mm |
| Conductor | 5 × 0.34 mm² |
| Connector Configuration | M12 plug / M12 socket |
| Plug Design | M12 angled |
| Socket Design | M12 straight |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| cULus Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | Viton/FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 118 g |
| Pack Quantity | 1 pc |
