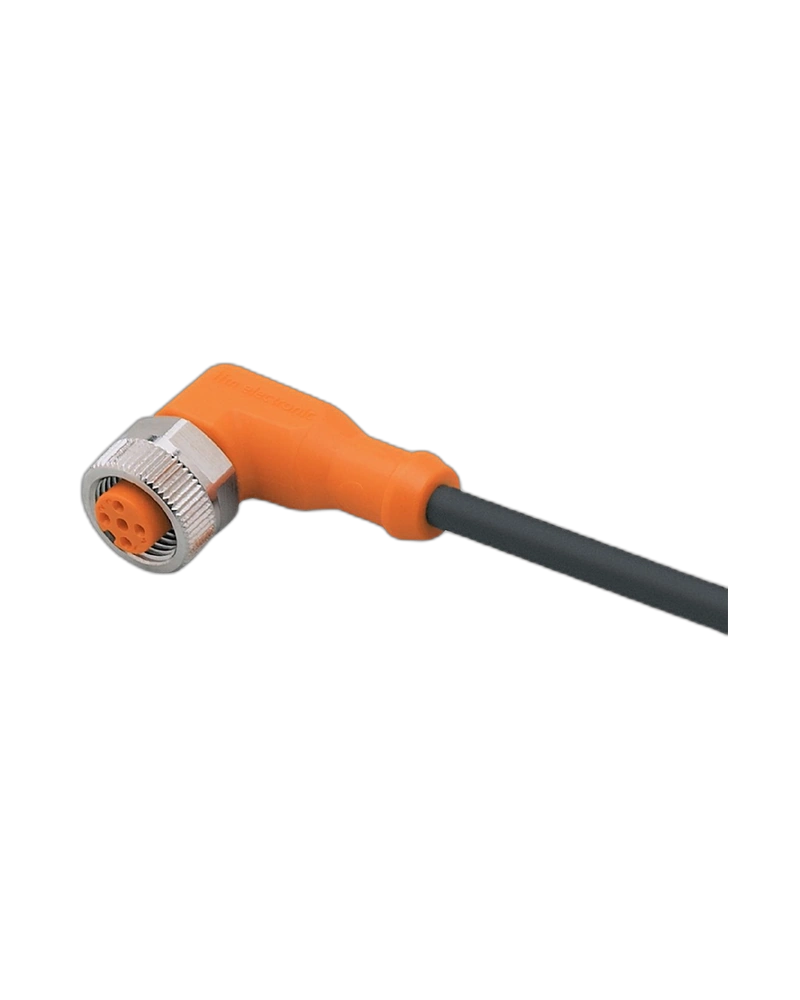

IFM EVC423 is a 15 m connecting cable with a 5-pin M12 angled socket for industrial automation applications. It uses a flexible PUR cable with gold-plated contacts and robust FKM sealing. The cable is suitable for factory automation, machine tools and applications involving coolants and lubricants.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Multi-Pin Connectivity
EVC423 provides a dependable connection solution for industrial automation components. Its 5-pin M12 angled socket supports connections where additional signal conductors are required. Gold-plated contacts help provide reliable electrical performance. The angled connector can also support convenient cable routing.
Long 15 m PUR Cable
The 15 m cable provides extended reach for industrial installations. PUR construction offers flexibility and durability for demanding applications. The cable is halogen-free and silicone-free. Its design supports reliable operation around industrial machinery.
Harsh Environment Protection
EVC423 offers IP65, IP67, IP68 and IP69K protection. FKM sealing provides dependable protection at the connector interface. The connector design is resistant to vibration and shock. This makes the cable suitable for challenging factory environments.
Dynamic Machine Use
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter helps protect the cable during movement. It is suitable for automated machinery and machine tools.
15 m PUR cable
5-pin M12 angled socket
A-coded connector
Gold-plated contacts
Halogen-free construction
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
High bending-cycle performance
FKM sealing
Industrial automation
Factory automation
Machine tools
Sensor and actuator connections
Automated production lines
Robotic machinery
Industrial control systems
Coolant and lubricant applications
| Specification | Details |
|---|---|
| Product Code | EVC423 |
| Product Type | Connecting Cable with Socket |
| Manufacturer | IFM |
| Order Code | ADOAH050MSS0015H05 |
| Cable Length | 15 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.6 mm |
| Conductor | 5 × 0.34 mm² |
| Socket | 1 × M12, angled |
| Coding | A |
| Contacts | 5, gold-plated |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 528 g |
| Pack Quantity | 1 pc |
