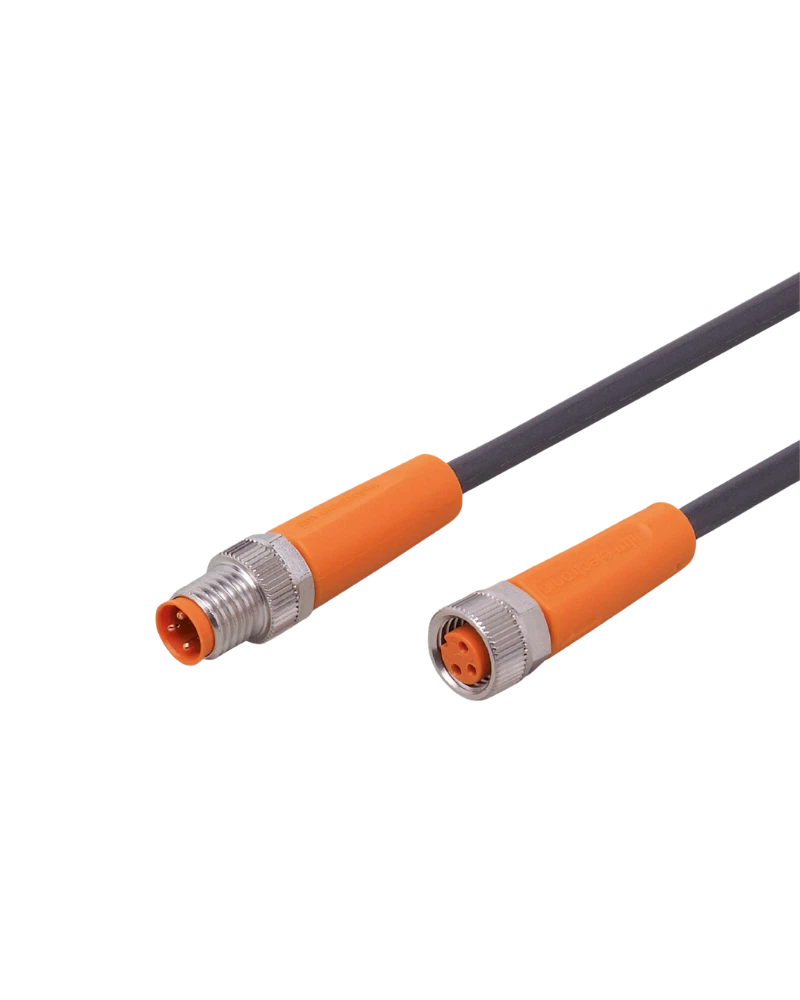

IFM EVC419 is a 2.5 m industrial connection cable designed for reliable connections between automation components. It features an M12 straight plug and M8 straight socket with gold-plated contacts. Its PUR cable construction provides flexibility, durability and reliable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connectivity
EVC419 is designed to connect sensors, actuators and automation components securely. Its M12 plug and M8 socket configuration supports convenient system integration. Gold-plated contacts provide dependable electrical connectivity. The cable is suitable for factory automation applications.
Flexible PUR Cable
The 2.5 m PUR cable offers flexibility for machine installation. The cable is designed to withstand industrial exposure to oils and coolants. Its halogen-free and silicone-free construction supports industrial requirements. The compact length makes it suitable for equipment-level connections.
High Protection
EVC419 is designed for harsh industrial environments where moisture, dust and mechanical stress may occur. The connector sealing system helps maintain reliable protection. The locking mechanism helps resist vibration and shock. This supports stable operation in machinery.
Dynamic Applications
The cable supports drag-chain applications and repeated movement. Its construction is designed for more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for automated and moving machinery.
2.5 m PUR cable
M12 straight plug
M8 straight socket
Gold-plated contacts
3 × 0.34 mm² conductors
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
High flexibility
Factory automation
Machine tools
Industrial sensors
Actuator connections
Robotic equipment
Production machinery
Industrial control systems
Automated machine installations
| Specification | Details |
|---|---|
| Product Code | EVC419 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS02,5H03STGF030MSS |
| Cable Length | 2.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 3 × 0.34 mm² |
| Plug | 1 × M12, straight |
| Socket | 1 × M8, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
