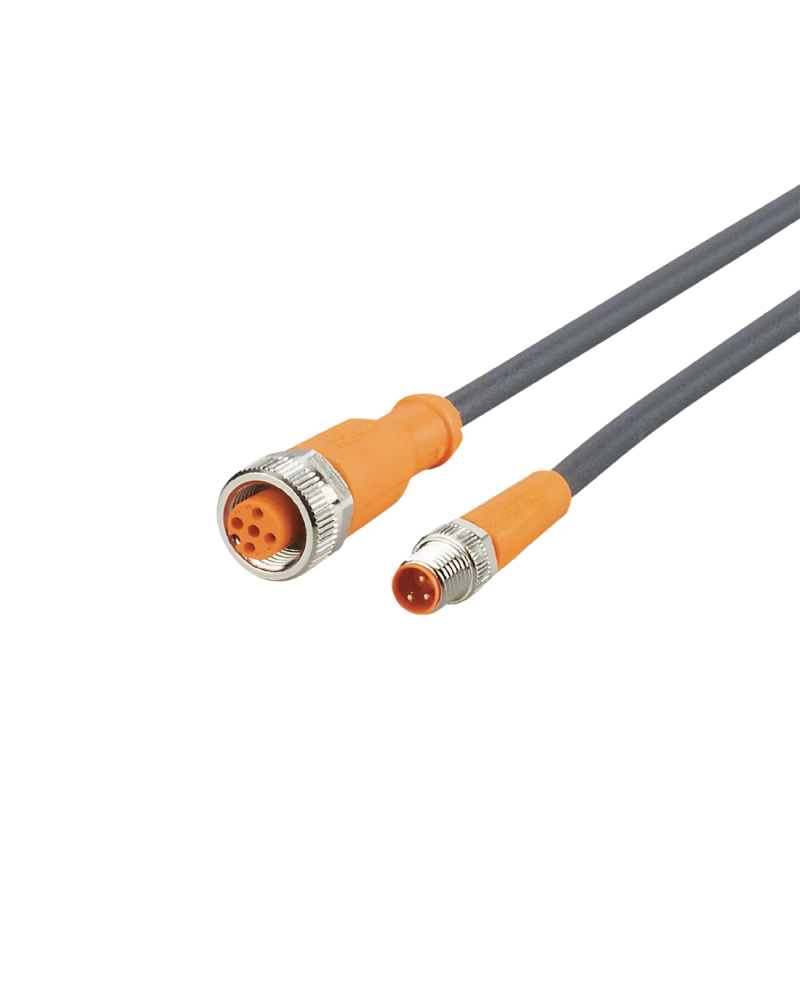

IFM EVC416 is a 1.5 m connection cable designed for dependable connections in industrial automation systems. It features an M8 straight plug and M12 straight socket with gold-plated contacts. The flexible PUR cable is suitable for drag-chain applications, machine tools and environments involving coolants and lubricants.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Signal Transmission
EVC416 provides a stable connection between industrial sensors, actuators and automation components. Its M8-to-M12 configuration supports reliable system integration. Gold-plated contacts help ensure dependable electrical connectivity. The cable is suitable for continuous industrial operation.
Compact 1.5 m Design
The 1.5 m cable length is suitable for short-distance connections within machinery and control systems. PUR construction provides a combination of flexibility and mechanical durability. Its compact design allows convenient installation in machine layouts. The cable is suitable for industrial automation equipment.
Industrial Protection
The cable offers IP65, IP67, IP68 and IP69K protection. This helps protect the connection from moisture, dust and demanding industrial cleaning conditions. FKM sealing provides reliable protection at the connector interface. The locking mechanism helps resist vibration and shock.
Dynamic Application Support
EVC416 is suitable for drag-chain installations and repeated cable movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for moving machinery and automated systems.
1.5 m PUR cable
M8 straight plug
M12 straight socket
Gold-plated contacts
Halogen-free construction
Silicone-free design
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitability
More than 5 million bending cycles
High vibration resistance
Factory automation
Machine tools
Industrial sensors
Automation control systems
Robotic machinery
Moving machine components
Coolant and lubricant environments
Industrial production equipment
| Specification | Details |
|---|---|
| Product Code | EVC416 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGH030MSS01,5H03STGF030MSS |
| Cable Length | 1.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 3 × 0.34 mm² |
| Plug | 1 × M8, straight |
| Socket | 1 × M12, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 64.3 g |
| Pack Quantity | 1 pc |
