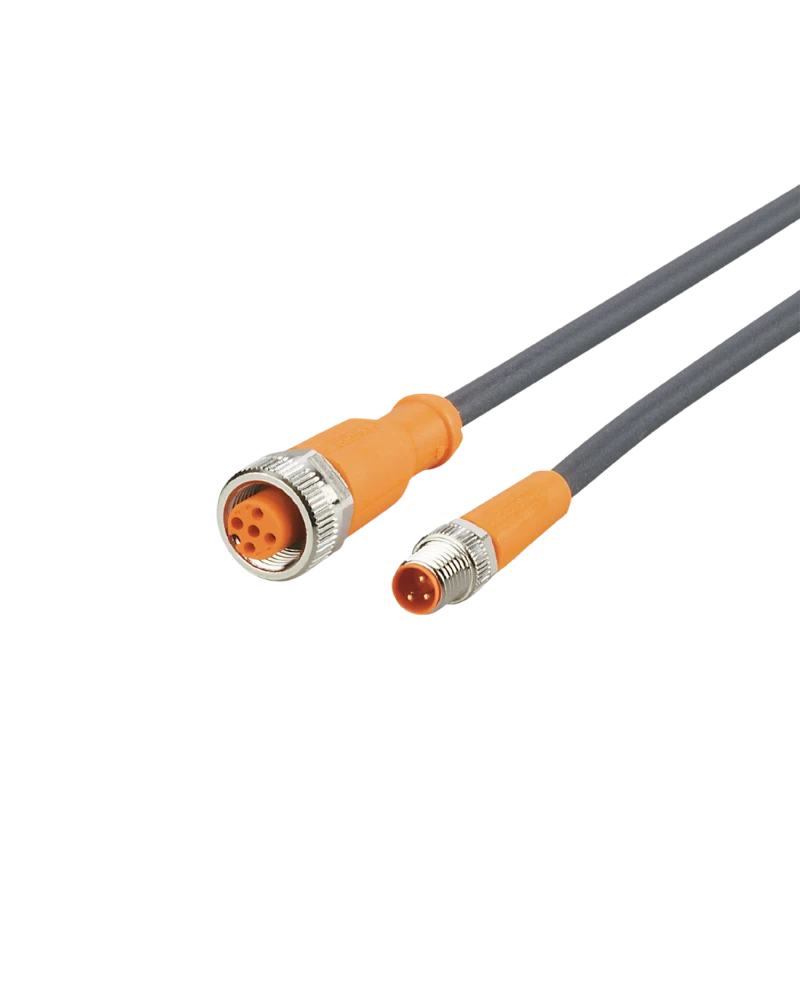

IFM EVC415 is a 3 m connection cable designed for reliable industrial automation connectivity. It combines an M8 straight plug with an M12 straight socket and uses gold-plated contacts for dependable electrical connections. Its PUR, halogen-free construction is suitable for demanding and dynamic industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Dependable Connection Technology
EVC415 provides a secure connection between compatible automation components. The M8 plug and M12 socket configuration supports reliable sensor and actuator connectivity. Gold-plated contacts help maintain stable electrical performance. The cable is suitable for factory automation applications.
Robust PUR Construction
The 3 m PUR cable is designed for durability in industrial environments. It is resistant to oils and coolants used around machinery. The halogen-free and silicone-free construction supports industrial installation requirements. Its flexible design allows convenient routing around equipment.
High Protection Rating
EVC415 provides IP65, IP67, IP68 and IP69K protection. This helps protect the connection from dust, water and high-pressure cleaning conditions. The FKM seal provides dependable connector sealing. The locking mechanism helps resist vibration and mechanical shock.
Suitable for Moving Machinery
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. Its minimum bending radius is 10 times the cable diameter. This makes it suitable for automated and moving machine applications.
3 m PUR cable
M8 straight plug
M12 straight socket
Gold-plated contacts
3 × 0.34 mm² conductors
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain compatible
High bending-cycle capability
Industrial automation
Machine tools
Factory automation
Sensor connections
Actuator connections
Automated production equipment
Robotic machinery
Dynamic machine applications
| Specification | Details |
|---|---|
| Product Code | EVC415 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGH030MSS0003H03STGF030MSS |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Plug | 1 × M8, straight |
| Socket | 1 × M12, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
