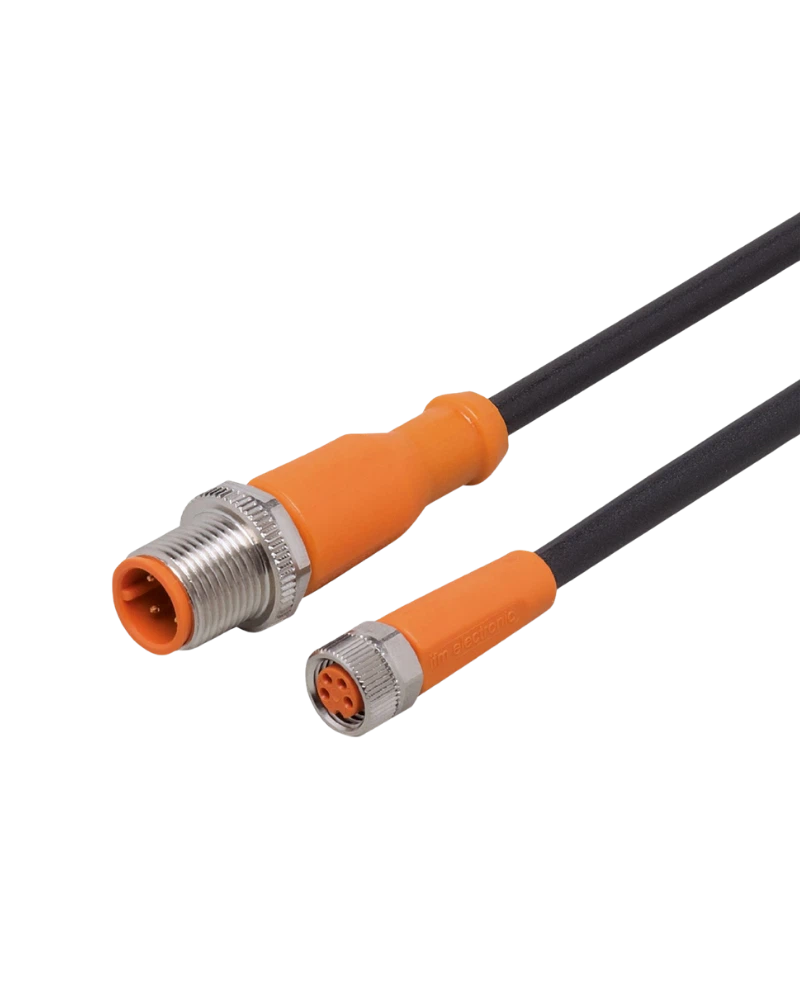

IFM EVC414 is a 20 m connection cable designed for reliable industrial automation connections. It uses an M12 straight plug and M8 straight socket with gold-plated contacts. The PUR cable is halogen-free, silicone-free and suitable for dynamic applications in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connectivity
EVC414 provides dependable connectivity between industrial sensors, actuators and control equipment. Its M12-to-M8 configuration supports easy integration with compatible automation components. Gold-plated contacts help maintain consistent electrical connections. The cable is suitable for continuous factory operation.
Extended 20 m Cable Length
The 20 m cable length provides flexibility when connecting equipment across larger machine installations. The PUR construction provides mechanical strength and flexibility. The 3 × 0.34 mm² cable design supports reliable signal transmission. Its black outer sheath is suited to industrial environments.
Protection in Harsh Conditions
EVC414 offers IP65, IP67, IP68 and IP69K protection. This provides protection against dust, moisture and demanding cleaning conditions. The FKM sealing material helps maintain connector integrity. Its locking mechanism improves resistance to vibration and shock.
High Flexibility
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter helps protect the cable during movement. This makes it suitable for automated machinery.
20 m PUR cable
M12 straight plug
M8 straight socket
Gold-plated contacts
3 × 0.34 mm² conductor
Halogen-free cable
Silicone-free construction
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
High bending-cycle performance
Factory automation
Industrial machine tools
Sensor connectivity
Actuator connections
Automated production systems
Robotic machinery
Industrial control equipment
Machine monitoring systems
| Specification | Details |
|---|---|
| Product Code | EVC414 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS0020H03STGH030MSS |
| Cable Length | 20 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Plug | 1 × M12, straight |
| Socket | 1 × M8, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
