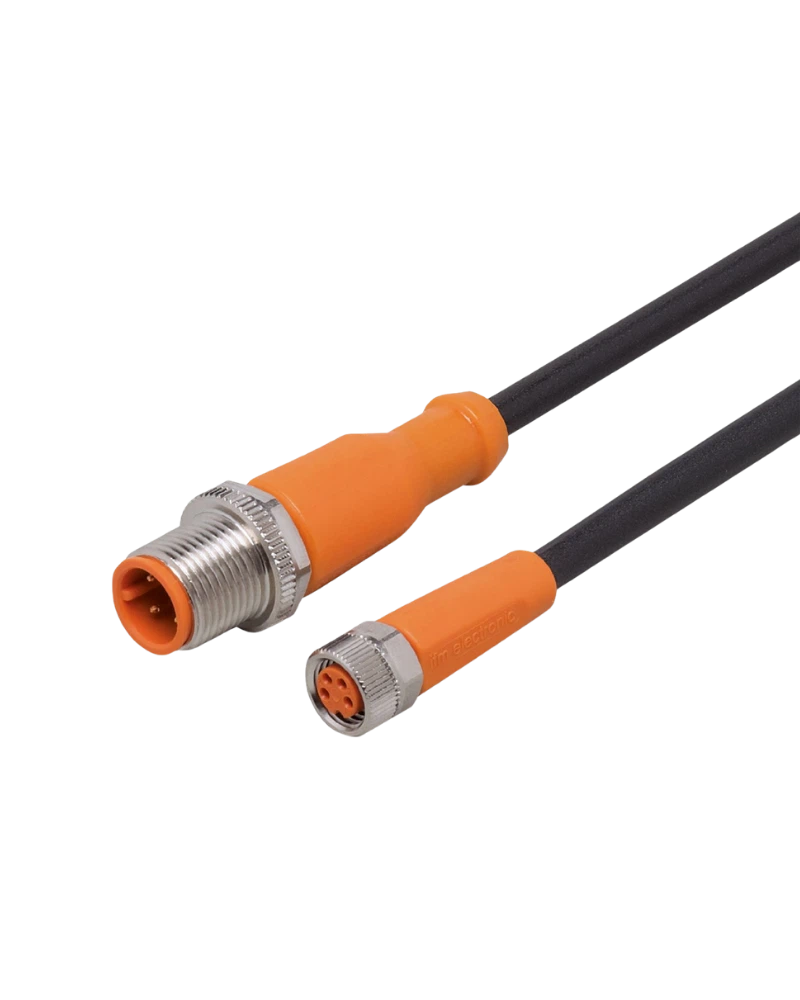

IFM EVC413 is a 15 m industrial connection cable designed for reliable sensor and automation connectivity. It features an M12 straight plug and M8 straight socket with gold-plated contacts. The flexible PUR cable is halogen-free, silicone-free and suitable for demanding factory automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Automation Connectivity
EVC413 is designed to provide stable connections between industrial sensors and automation equipment. Its M12 plug and M8 socket configuration supports convenient system integration. Gold-plated contacts help maintain reliable electrical performance. The cable is suitable for continuous industrial applications.
Long-Length Cable Solution
With a 15 m cable length, EVC413 is suitable for installations requiring extended connection distances. The PUR cable offers flexibility while maintaining mechanical durability. Its 3 × 0.34 mm² conductor configuration supports reliable signal transmission. The black cable sheath is suitable for industrial environments.
Protection Against Industrial Conditions
The cable provides IP65, IP67, IP68 and IP69K protection. FKM sealing helps protect the connector interface from moisture and contamination. The locking arrangement improves resistance to vibration and shock. This makes the cable suitable for machine tools and factory automation.
Designed for Cable Movement
EVC413 supports drag-chain applications and repeated movement. It is specified for more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This provides dependable performance in automated machinery.
15 m PUR cable
M12 straight plug
M8 straight socket
Gold-plated contacts
3 × 0.34 mm² conductors
Halogen-free construction
Silicone-free construction
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain compatible
High bending-cycle capability
Industrial automation
Factory automation systems
Machine tools
Sensor and actuator connections
Automated machinery
Robotic systems
Production lines
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC413 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS0015H03STGH030MSS |
| Cable Length | 15 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Plug | 1 × M12, straight |
| Socket | 1 × M8, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing | TPU |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
