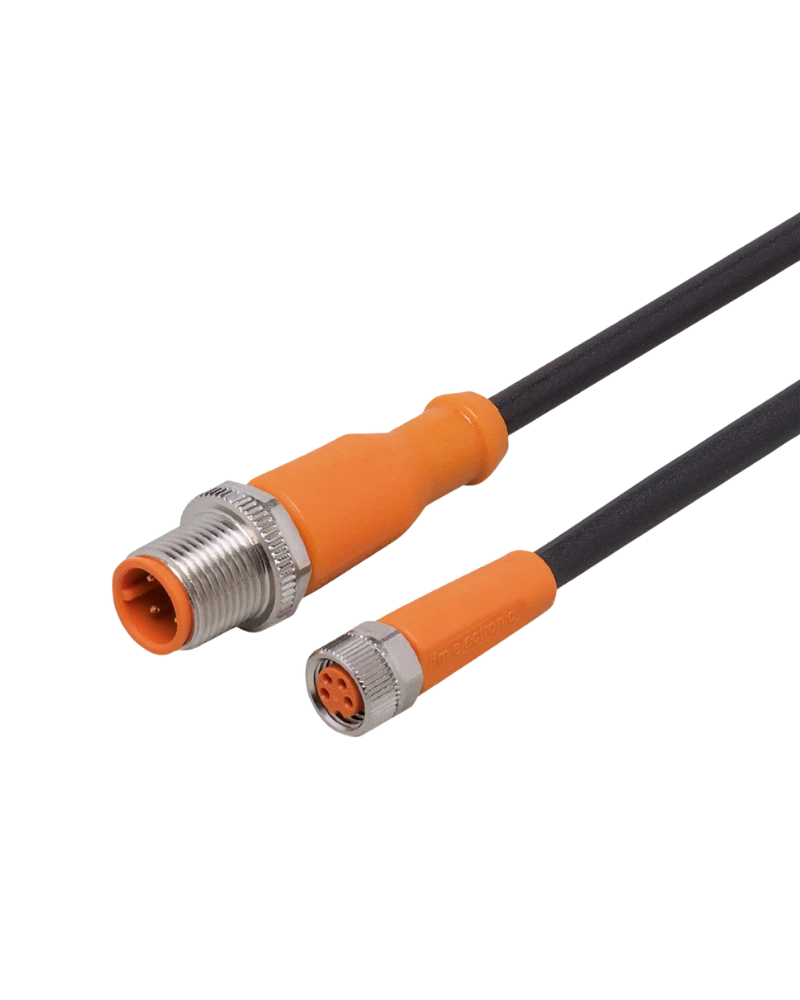

IFM EVC412 is a 10 m industrial connection cable designed for dependable connections between automation components. It combines an M12 straight plug with an M8 straight socket and gold-plated contacts. Its PUR, halogen-free cable construction provides durability and flexibility for industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Signal Connection
EVC412 provides a dependable connection between industrial sensors and automation equipment. The M12 plug and M8 socket arrangement allows convenient integration with compatible components. Gold-plated contacts support reliable electrical connectivity. It is designed for continuous industrial use.
Robust PUR Cable
The 10 m PUR cable offers flexibility and durability for factory environments. The cable is resistant to oils and coolants used around industrial machinery. Its halogen-free and silicone-free construction makes it suitable for various automation installations. The black cable sheath provides a practical industrial design.
High Environmental Protection
The cable is designed for demanding industrial environments with IP65, IP67, IP68 and IP69K protection. FKM sealing helps maintain a reliable connection under challenging conditions. The locking mechanism provides resistance against vibration and shock. This supports stable operation in machinery.
Suitable for Dynamic Applications
EVC412 is suitable for applications where cables may experience repeated movement. It supports drag-chain installation and more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for automated machinery and moving equipment.
10 m PUR cable
M12 straight plug
M8 straight socket
3 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free cable
Silicone-free construction
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
High vibration resistance
Industrial automation systems
Machine tools
Factory machinery
Sensor and actuator connections
Automated production lines
Robotic machinery
Control panels and automation equipment
Industrial monitoring systems
| Specification | Details |
|---|---|
| Product Code | EVC412 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS0010H03STGH030MSS |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Plug | 1 × M12, straight |
| Socket | 1 × M8, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
