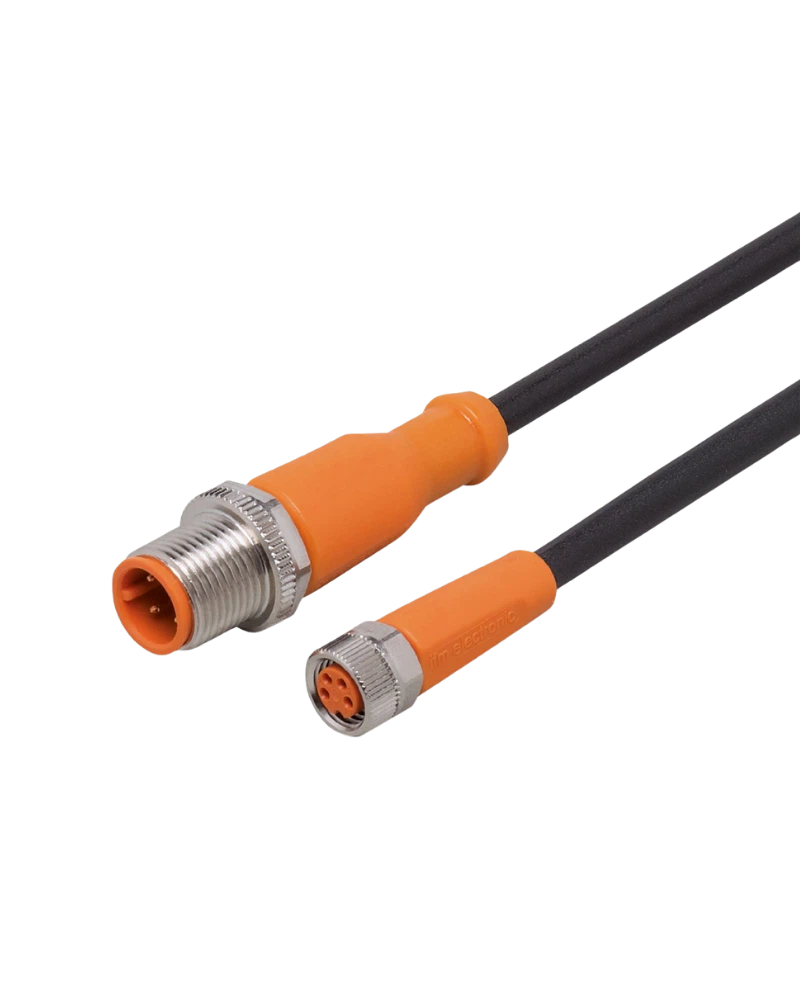

IFM EVC411 is a durable 7 m connection cable designed for reliable connections in industrial automation systems. It features an M12 plug and M8 socket with gold-plated contacts for dependable signal transmission. The PUR cable is halogen-free, silicone-free and suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connection
EVC411 provides a secure connection between sensors, actuators and automation components. Its M12 plug and M8 socket support reliable signal transmission in industrial applications. The robust construction helps maintain stable connections during continuous operation. It is suitable for factory automation and machine-building applications.
Durable Cable Construction
The cable uses a flexible PUR sheath designed to withstand demanding operating conditions. It is resistant to oils and coolants commonly found around machine tools. The halogen-free construction provides an additional advantage for industrial installations. Its flexible design supports cable-chain applications.
Protection for Harsh Environments
The connection cable offers IP65, IP67, IP68 and IP69K protection. This helps protect the connection against dust, moisture and high-pressure cleaning conditions. The FKM sealing material provides reliable sealing around the connector. The locking mechanism also helps prevent loosening caused by vibration.
Flexible Motion Capability
EVC411 is suitable for dynamic industrial applications where cable movement is required. It supports a minimum bending radius of 10 times the cable diameter. The cable is designed for more than 5 million bending cycles. This makes it suitable for automated machinery and moving equipment.
M12 straight plug and M8 straight socket
7 m PUR cable
3 × 0.34 mm² conductor construction
Gold-plated contacts
Halogen-free and silicone-free construction
IP65, IP67, IP68 and IP69K protection
Oil and coolant resistant
Suitable for drag-chain applications
High resistance to vibration and shock
Reliable FKM sealing
Factory automation systems
Industrial sensor connections
Machine tools
Automated production machinery
Robotic equipment
Control and monitoring systems
Coolant and lubricant environments
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | EVC411 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS0007H03STGH030MSS |
| Cable Length | 7 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Plug | 1 × M12, straight |
| Socket | 1 × M8, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
