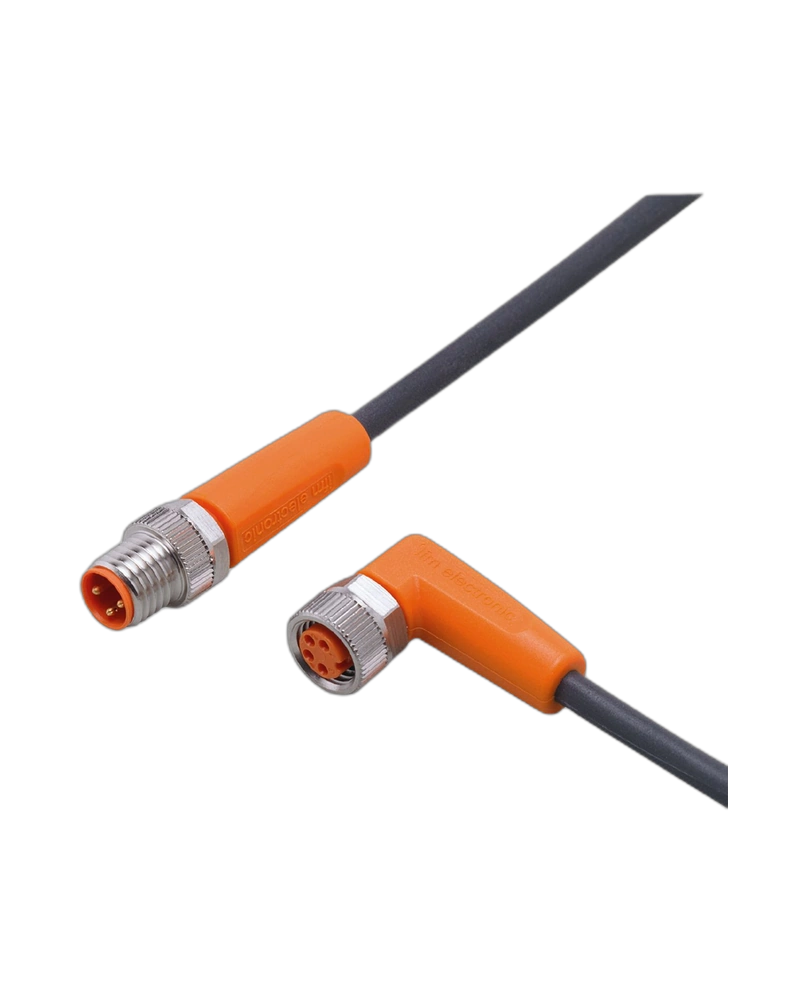

IFM EVC276 is a 0.6 m M8 plug to M8 socket connection cable with a straight plug and angled socket. It is designed to provide flexible connectivity in industrial automation and machine applications. The PUR cable is silicone-free and halogen-free with gold-plated contacts. High IP protection and drag-chain suitability support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC276 uses a straight M8 plug and angled M8 socket to provide flexible cable routing. The 0.6 m length is suitable for connecting nearby industrial components. The angled socket helps reduce sharp cable routing around machine parts. This design is particularly useful in compact installations.
The cable supports AC/DC operation below 50 V AC and below 60 V DC. Gold-plated contacts provide reliable electrical connectivity. Its 3 A current rating supports suitable industrial automation devices. Secure locking helps resist vibration and shock.
The cable is manufactured using PUR material with TPU connector housing. FKM sealing provides reliable protection at the connection interface. Brass nickel-plated locking components ensure secure mechanical coupling. The cable is silicone-free and halogen-free.
The EVC276 provides IP65, IP67, IP68 and IP69K protection. It operates from -25°C to +90°C. It is suitable for drag-chain applications with repeated movement. More than 5 million bending cycles support long-term mechanical durability.
M8 plug to M8 socket
0.6 m PUR cable
3 × 0.25 mm² cable
Straight plug and angled socket
Gold-plated contacts
Silicone-free and halogen-free
<50 V AC / <60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Factory automation
Sensor and actuator connections
Machine tools
Compact machinery
Control systems
Moving equipment
| Specification | Details |
|---|---|
| Product Model | EVC276 |
| Part Number | VDOAF030MSS00,6H03STGF030MSS |
| Product Type | Connection Cable / Patchcord |
| Manufacturer | IFM |
| Connector 1 | M8 Plug |
| Connector 1 Design | Straight |
| Connector 2 | M8 Socket |
| Connector 2 Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25°C to +90°C |
| Moving Ambient Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Dimensions | 10 × 10 × 36 mm |
| Weight | 31.1 g |
