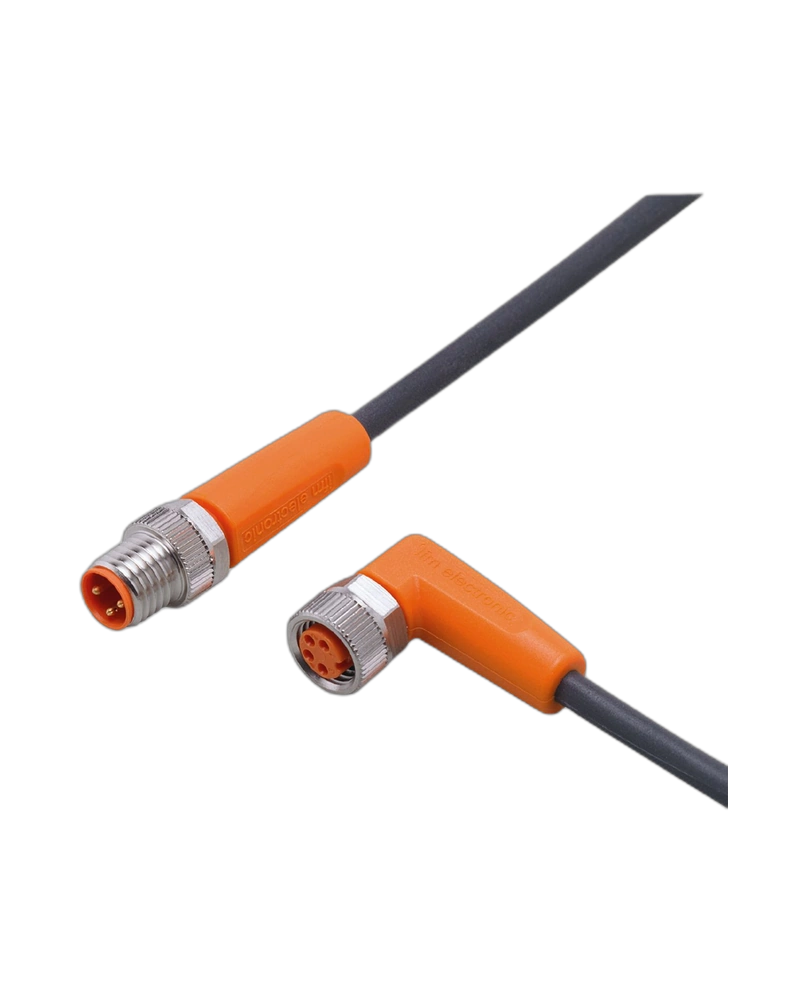

IFM EVC275 is a compact 0.3 m M8 plug to M8 socket connection cable with a straight plug and angled socket. It is designed for industrial automation applications where flexible cable routing is required. The PUR cable features gold-plated contacts and robust industrial construction. High IP protection and drag-chain suitability support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC275 combines a straight M8 plug with an angled M8 socket. This configuration is useful where cable routing space is limited. The compact 0.3 m length is suitable for closely positioned industrial components. It helps provide a clean and flexible connection arrangement.
The cable supports AC/DC applications below 50 V AC and below 60 V DC. Gold-plated contacts help maintain stable electrical signal transmission. The 3 A current rating supports suitable industrial sensor and actuator applications. The locking mechanism provides secure coupling.
PUR cable construction provides flexibility and mechanical durability. TPU connector housing and FKM sealing protect the connection from environmental conditions. Nickel-plated brass locking components provide secure coupling. The cable is silicone-free and halogen-free.
The EVC275 provides IP65, IP67, IP68 and IP69K protection. It operates from -25°C to +90°C. The cable is suitable for drag-chain applications. More than 5 million bending cycles support repeated machine movement.
M8 plug to M8 socket
0.3 m PUR cable
3 × 0.25 mm² cable
Straight plug and angled socket
Gold-plated contacts
Silicone-free and halogen-free
<50 V AC / <60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Compact machine wiring
Sensor connections
Machine tools
Factory automation
Control equipment
Moving machinery
| Specification | Details |
|---|---|
| Product Model | EVC275 |
| Part Number | VDOAF030MSS00,3H03STGF030MSS |
| Product Type | Connection Cable / Patchcord |
| Manufacturer | IFM |
| Connector 1 | M8 Plug |
| Connector 1 Design | Straight |
| Connector 2 | M8 Socket |
| Connector 2 Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25°C to +90°C |
| Moving Ambient Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Dimensions | 10 × 10 × 36 mm |
| Weight | 26.2 g |
