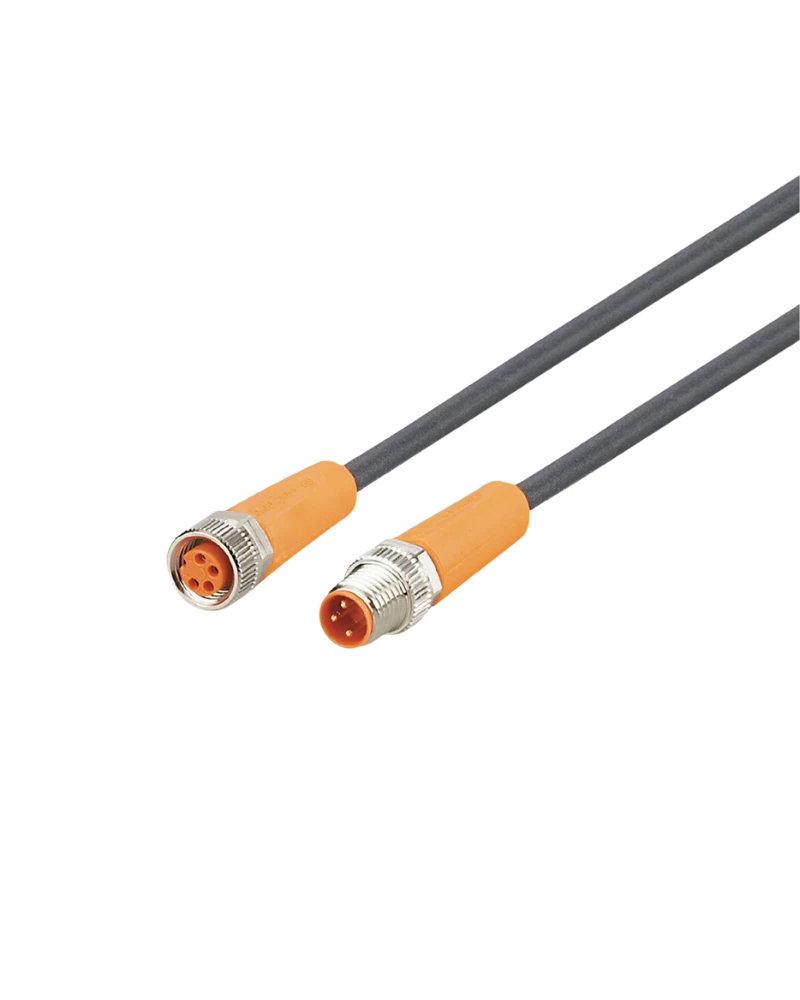

IFM EVC274 is a 5 m M8 plug to M8 socket connection cable designed for extended industrial automation connections. It uses a flexible PUR cable with straight connectors and gold-plated contacts. The cable provides high environmental protection and reliable sealing in harsh industrial conditions. Its long cable length is suitable for machines requiring extended connection distances.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC274 provides a 5 m cable length for installations where connected devices are positioned farther apart. The M8 plug and socket configuration provides reliable industrial connectivity. Straight connectors simplify installation and routing. The extended length reduces the need for additional cable extensions.
The cable supports AC/DC applications with 50 V AC and 60 V DC operating capability. Gold-plated contacts help provide reliable electrical signal transmission. A 3 A current rating supports compatible automation applications. The locking mechanism provides secure mechanical coupling.
The EVC274 uses PUR cable, TPU connector bodies and FKM sealing. These materials provide durability and environmental resistance. Brass nickel-plated locking components help maintain secure connections. The cable is silicone-free and halogen-free.
The cable provides IP65, IP67, IP68 and IP69K protection. It operates from -25°C to +90°C. Drag-chain suitability allows use in moving machine applications. The cable supports repeated bending and mechanical movement.
M8 plug to M8 socket
5 m PUR cable
3 × 0.25 mm² cable
Straight plug and straight socket
Gold-plated contacts
Silicone-free and halogen-free
<50 V AC / <60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
Long-distance sensor connections
Actuator connections
Production machinery
Moving equipment
| Specification | Details |
|---|---|
| Product Model | EVC274 |
| Part Number | VDOGF040MSS0005H03STGF030MSS |
| Product Type | Connection Cable / Patchcord |
| Manufacturer | IFM |
| Connector 1 | M8 Plug |
| Connector 1 Design | Straight |
| Connector 2 | M8 Socket |
| Connector 2 Design | Straight |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25°C to +90°C |
| Moving Ambient Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Weight | 118.7 g |
