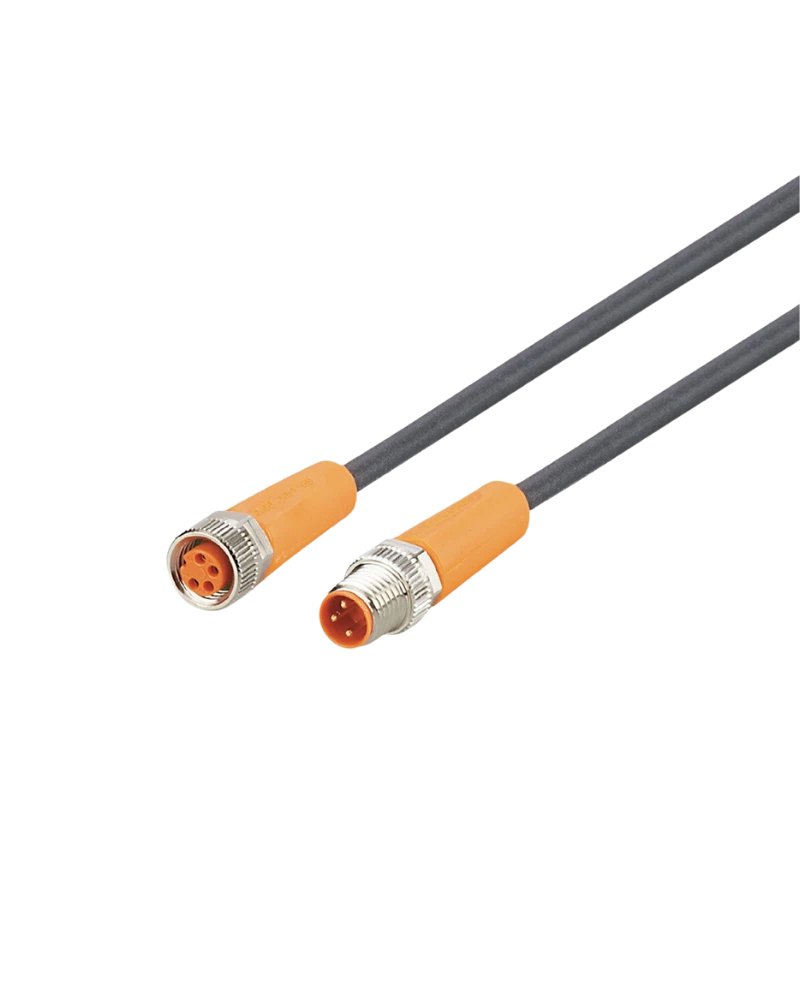

IFM EVC272 is a 1 m M8 plug to M8 socket connection cable designed for industrial automation and factory applications. It features straight connectors and a flexible PUR cable with gold-plated contacts. The cable provides reliable sealing and high protection against harsh environmental conditions. Its drag-chain suitability makes it suitable for moving machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC272 provides a 1 m connection length for common industrial machine installations. The M8 plug and socket arrangement allows secure connection between compatible devices. Straight connectors support easy routing and installation. The cable is suitable for sensors, actuators and automation equipment.
The cable is designed for AC/DC applications with less than 50 V AC and less than 60 V DC. Gold-plated contacts support dependable signal transmission. Its 3 A current rating provides suitable capacity for compatible devices. The coupling ring helps resist vibration and shock.
The cable uses PUR insulation with TPU connector bodies and FKM sealing. Brass nickel-plated locking components provide secure mechanical coupling. Its construction is designed for industrial environments. It is silicone-free and halogen-free.
IP65, IP67, IP68 and IP69K protection helps protect the connection from dust and water. The operating temperature range is -25°C to +90°C. The cable is suitable for use with machine tools, coolants and lubricants. Drag-chain suitability supports repeated movement.
M8 plug to M8 socket
1 m PUR cable
3 × 0.25 mm² cable
Straight plug and straight socket
Gold-plated contacts
Silicone-free and halogen-free
<50 V AC / <60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
Sensor connections
Actuator connections
Control systems
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVC272 |
| Part Number | VDOGF040MSS0001H03STGF030MSS |
| Product Type | Connection Cable / Patchcord |
| Manufacturer | IFM |
| Connector 1 | M8 Plug |
| Connector 1 Design | Straight |
| Connector 2 | M8 Socket |
| Connector 2 Design | Straight |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25°C to +90°C |
| Moving Ambient Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Weight | 38.9 g |
