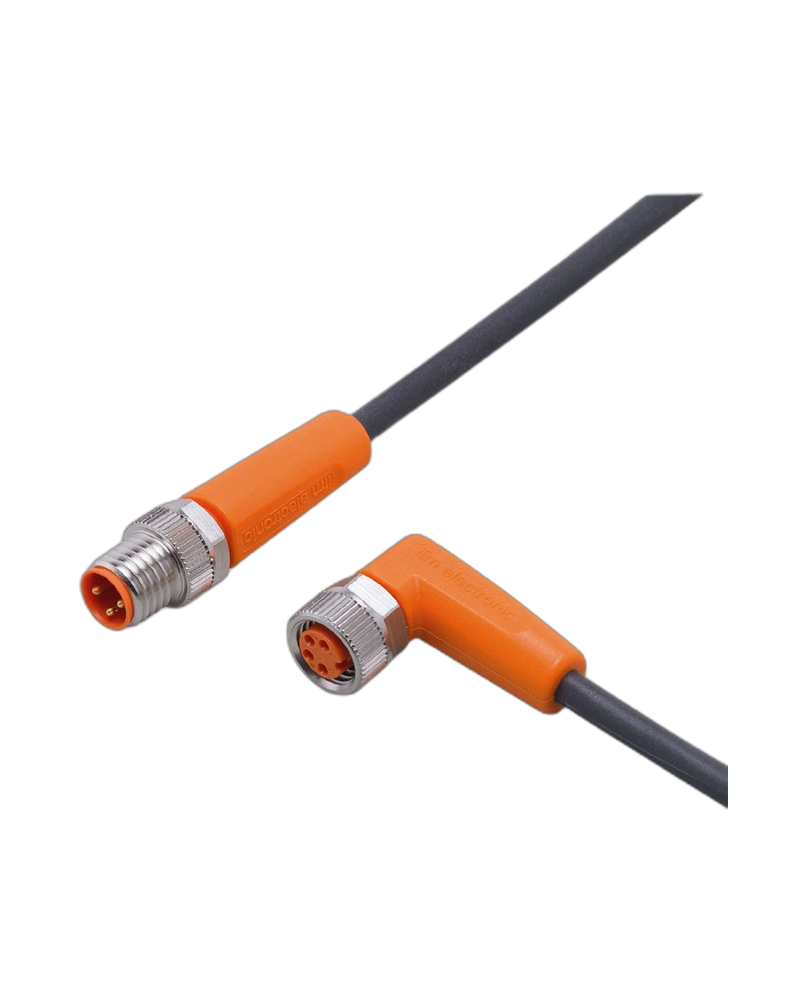

IFM EVC261 is a 0.6 m M8-to-M8 connection cable designed for industrial sensor and automation applications. It features a straight M8 plug and angled M8 socket for flexible installation. The PUR cable provides durable performance in demanding environments. High IP protection ensures reliable operation around dust, water, oils and coolants.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC261 provides a practical M8-to-M8 connection for compatible industrial components. Its straight plug and angled socket make it suitable for installations with limited space. The 0.6 m cable length provides convenient device-to-device connectivity. The secure connector design helps maintain reliable connections.
Gold-plated contacts provide stable electrical performance and help reduce connection-related issues. The cable supports AC/DC operation. Its 3 A current rating makes it suitable for compatible industrial sensor and actuator applications. The locking mechanism provides secure coupling.
The EVC261 uses PUR cable with TPU connector housings and FKM sealing. The materials are designed for industrial environments. It is free from silicone and halogens. The cable construction provides good resistance to mechanical stress and environmental conditions.
IP65, IP67, IP68 and IP69K protection helps protect the connection from dust and water. The cable operates from -25°C to 90°C. Drag-chain suitability allows use in moving applications. More than 5 million bending cycles support repeated machine movement.
M8 plug to M8 socket
0.6 m PUR cable
3 × 0.25 mm² cable
Straight plug and angled socket
Gold-plated contacts
Less than 50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
High bending durability
Industrial automation
Sensor connections
Machine tools
Factory automation
Control equipment
Moving machinery
Production systems
| Specification | Details |
|---|---|
| Product Model | EVC261 |
| Manufacturer | IFM |
| Part Number | VDOAF040MSS00,6H03STGF030MSS |
| Product Type | Connection Cable |
| Connector 1 | M8 Plug |
| Connector 2 | M8 Socket |
| Connector Design | Straight / Angled |
| Number of Pins | 3 |
| Coding | A-coded |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.25 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Drag Chain Suitable | Yes |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
