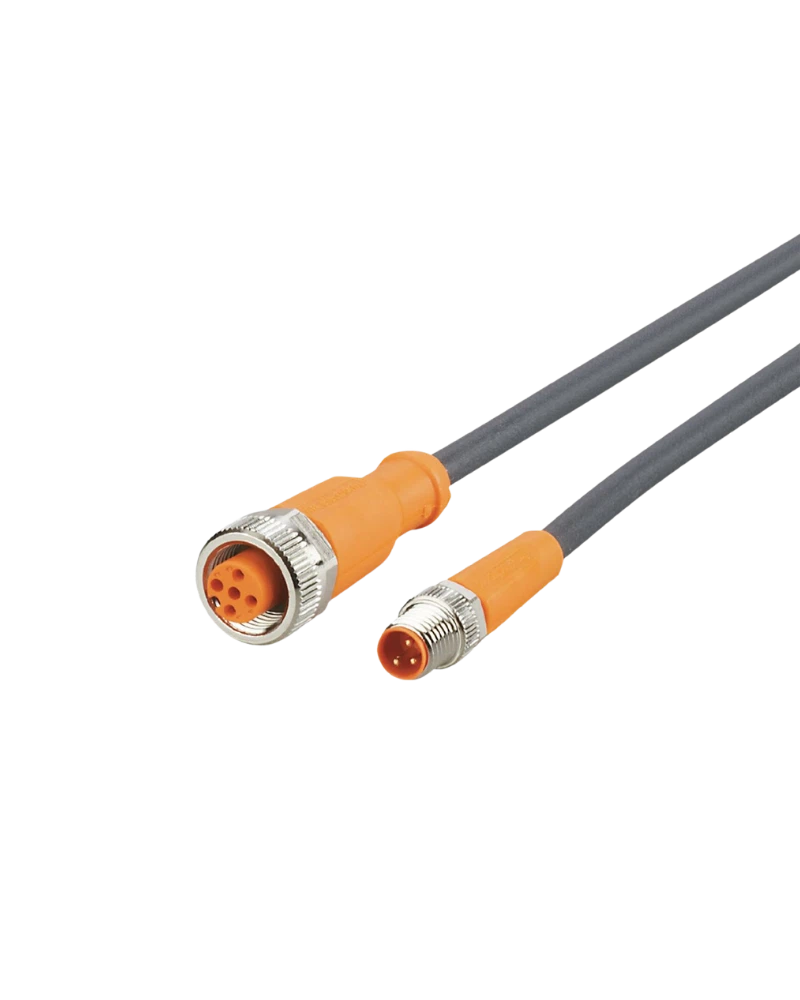

IFM EVC259 is a 5 m M8 plug to M12 socket connection cable for industrial automation and factory applications. Its PUR cable provides flexible and durable connectivity over longer distances. Gold-plated contacts ensure dependable signal transmission. The cable offers high protection against harsh environmental conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC259 provides a 5 m cable length for installations where sensors and control devices are positioned farther apart. Its M8 plug and M12 socket configuration supports reliable industrial connectivity. The straight connector design simplifies cable routing. It helps reduce the requirement for additional cable extensions.
The cable supports AC/DC applications with 50 V AC and 60 V DC operating capability. Gold-plated contacts provide dependable electrical connection. The 3 A current rating supports suitable industrial sensor and actuator applications. Its robust connection mechanism helps prevent accidental disconnection.
The EVC259 is designed for harsh industrial environments with IP65, IP67, IP68 and IP69K protection. PUR cable construction provides good mechanical durability. FKM sealing protects the connection against environmental exposure. The cable is suitable for applications involving oils and coolants.
The cable is suitable for drag-chain applications with repeated movement. It supports a minimum bending radius of 10 times the cable diameter. The cable can withstand more than 5 million bending cycles. This makes it suitable for automated machinery and moving equipment.
M8 plug to M12 socket
5 m PUR cable
3 × 0.34 mm² cable
Gold-plated contacts
Silicone-free and halogen-free
50 V AC / 60 V DC operating capability
3 A current rating
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
Sensor and actuator wiring
Production machinery
Control systems
Moving equipment
| Specification | Details |
|---|---|
| Product Model | EVC259 |
| Manufacturer | IFM |
| Part Number | VDOGH030MSS0005H03STGF030MSS |
| Product Type | Connection Cable / Patchcord |
| Connector 1 | M8 Plug |
| Connector 2 | M12 Socket |
| Connector Design | Straight / Straight |
| Number of Pins | 3 |
| Coding | A-coded |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Drag Chain Suitable | Yes |
| Weight | 153.5 g |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Travel Speed | Max. 3.3 m/s |
