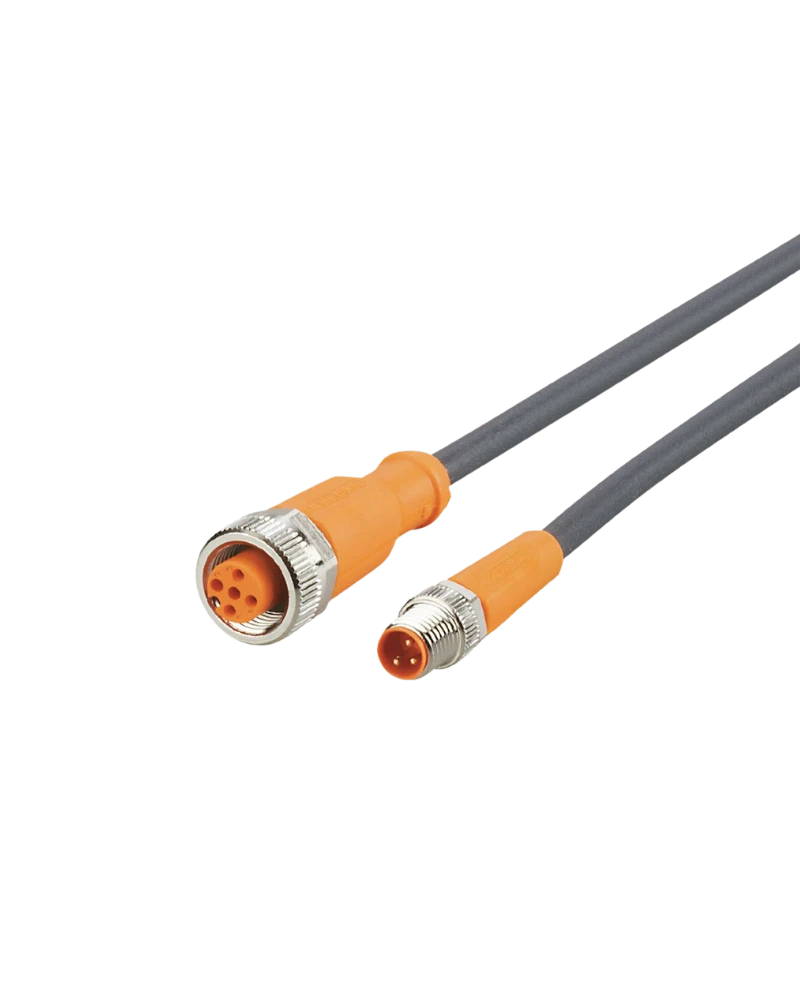

IFM EVC257 is a 1 m M8-to-M12 connection cable designed for reliable industrial sensor and actuator connections. It uses a three-core PUR cable with gold-plated contacts. The cable supports AC/DC applications and provides excellent environmental protection. Its robust construction makes it suitable for demanding automation and machinery applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connectivity
The EVC257 connects M8 and M12 components in industrial automation systems. Its 1 m cable length provides practical connection flexibility. Straight connectors support easy installation and routing. Gold-plated contacts provide reliable electrical connectivity.
Durable Cable Construction
The cable uses PUR insulation with a robust TPU connector body. FKM sealing helps protect the connection against environmental exposure. The locking mechanism provides secure connection during operation. It is designed to withstand vibration and mechanical movement.
Protection for Harsh Environments
The EVC257 offers IP65, IP67, IP68 and IP69K protection. It operates from -25 to 90°C. The cable is silicone-free and halogen-free. Drag-chain suitability allows use in applications involving repeated movement.
M8 plug / M12 socket
1 m PUR cable
3-core construction
AC/DC electrical design
<50 V AC / <60 V DC
3 A current rating
Gold-plated contacts
IP65 / IP67 / IP68 / IP69K
Silicone-free and halogen-free
Drag-chain suitable
Industrial automation
Sensor and actuator connections
Machine tools
Factory automation
Control systems
Moving industrial machinery
| Specification | Details |
|---|---|
| Product Model | EVC257 |
| Manufacturer | IFM |
| Part Number | VDOGH030MSS0001H03STGF030MSS |
| Product Type | Connection cable / Patchcord |
| Connector | M8 plug / M12 socket |
| Connector Design | Straight / straight |
| Number of Pins | 3 |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Nut Material | Brass, nickel-plated |
| Drag Chain Suitable | Yes |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 58.5 g |
