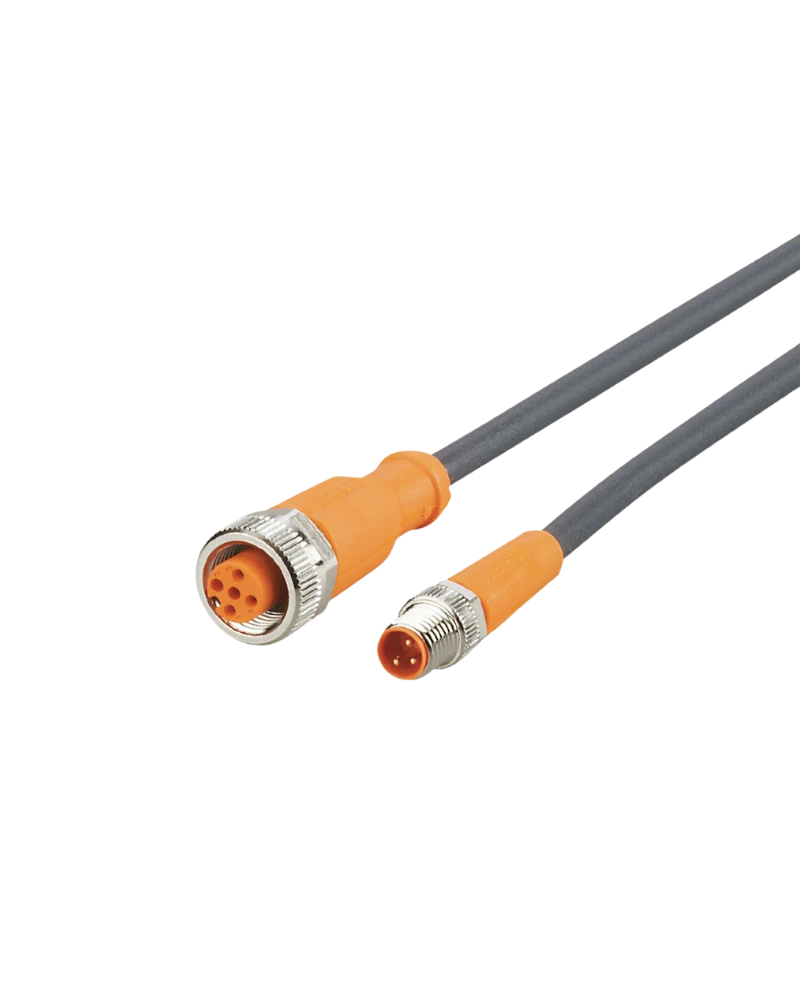

IFM EVC256 is a 0.6 m M8-to-M12 connection cable designed for industrial sensor and actuator systems. It features a three-core PUR cable with gold-plated contacts. The cable supports AC/DC electrical applications and offers high environmental protection. Its durable construction is suitable for fixed and moving industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Flexible Connection
The EVC256 provides M8 plug to M12 socket connectivity. Its 0.6 m length is suitable for compact industrial installations. Straight connectors make routing and installation easier. It provides a convenient connection between compatible automation devices.
Reliable Electrical Performance
The cable supports less than 50 V AC and less than 60 V DC. It provides a 3 A current rating for suitable industrial applications. Gold-plated contacts improve connection reliability. The three-core cable supports standard sensor connectivity.
High Mechanical Durability
The EVC256 uses PUR cable with TPU housing and FKM sealing. It provides IP65, IP67, IP68 and IP69K protection. It is suitable for drag-chain applications with repeated bending. The cable supports more than five million bending cycles.
M8 plug / M12 socket
0.6 m PUR cable
3 × 0.34 mm² cable
AC/DC electrical design
<50 V AC / <60 V DC
3 A current rating
Gold-plated contacts
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
5 million bending cycles
Industrial automation
Sensor connections
Machine tools
Factory automation
Moving machinery
Control and monitoring systems
| Specification | Details |
|---|---|
| Product Model | EVC256 |
| Manufacturer | IFM |
| Part Number | VDOGH030MSS00,6H03STGF030MSS |
| Product Type | Connection cable / Patchcord |
| Connector | M8 plug / M12 socket |
| Connector Design | Straight / straight |
| Number of Pins | 3 |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Drag Chain Suitable | Yes |
| Bending Cycles | >5 million |
| Weight | 46.6 g |
