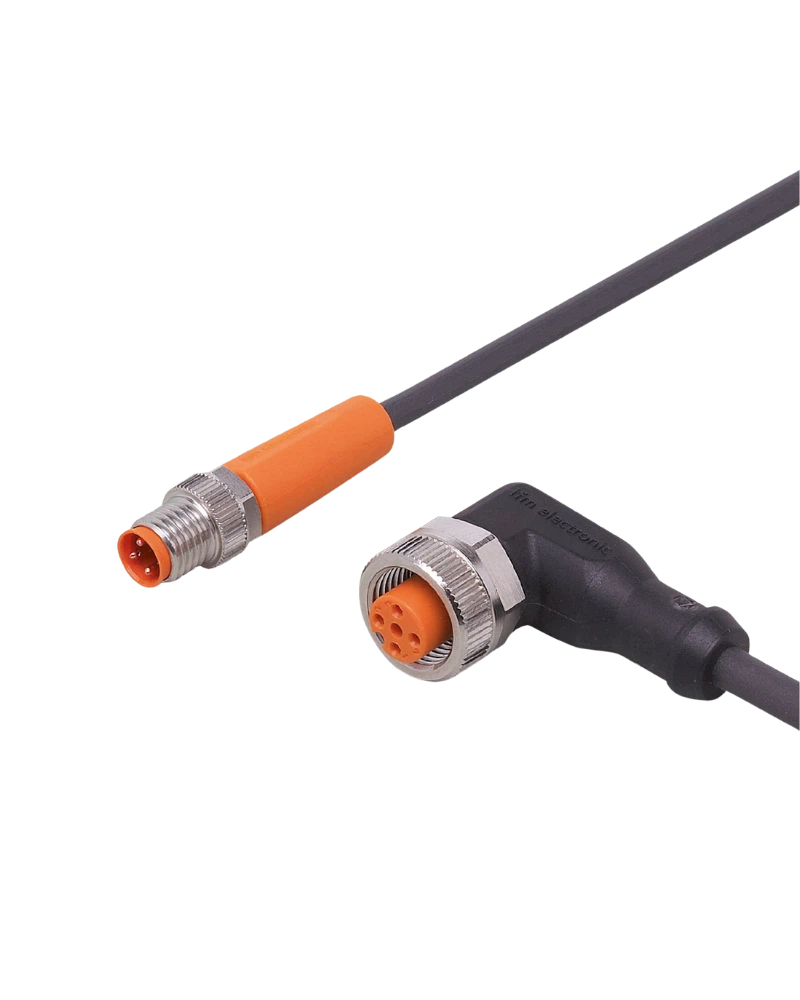

IFM EVC254 is a 5 m M8-to-M12 connection cable designed for industrial sensor and actuator applications. It uses a three-core PUR cable with DC PNP electrical design. Its high IP protection provides reliable performance in harsh environments. Gold-plated contacts and robust connector construction support long-term operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Connection Range
The 5 m cable length provides flexibility when connecting sensors to control equipment. The M8 plug and M12 socket provide compatibility with industrial automation devices. The cable is suitable for installations where longer cable routing is required. Its connector arrangement simplifies machine wiring.
PNP Sensor Connectivity
The EVC254 supports DC PNP operation from 10 to 36 V DC. Its three-core PUR cable is suitable for standard sensor connections. Integrated green and yellow LEDs provide status indication. Gold-plated contacts support stable signal transmission.
Designed for Harsh Conditions
The cable provides IP65, IP67, IP68 and IP69K protection. PUR, TPU and FKM materials provide durability. It is suitable for drag-chain movement. The cable can withstand repeated bending and torsional movement.
M8 plug / M12 socket
5 m PUR cable
3 × 0.34 mm² cable
DC PNP electrical design
10–36 V DC
Gold-plated contacts
IP65 / IP67 / IP68 / IP69K
Yellow output LED
Green power LED
Drag-chain suitable
Industrial automation
Sensor and actuator connections
Machine tools
Factory production lines
Control systems
Moving equipment
| Specification | Details |
|---|---|
| Product Model | EVC254 |
| Manufacturer | IFM |
| Part Number | VDOAH032MSS0005H03STGF030MSS |
| Product Type | Connection cable |
| Connector | M8 plug / M12 socket |
| Connector Design | Straight / angled |
| Number of Pins | 3 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Drag Chain Suitable | Yes |
| Bending Cycles | >5 million |
| Weight | Approx. 173.8 g |
