IFM EVC253 is a 2 m M8-to-M12 connection cable for industrial sensor and actuator applications. It features a three-core PUR cable and DC PNP electrical design. The cable provides high protection against dust, water and demanding industrial conditions. Gold-plated contacts support reliable electrical performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Flexible Sensor Connectivity

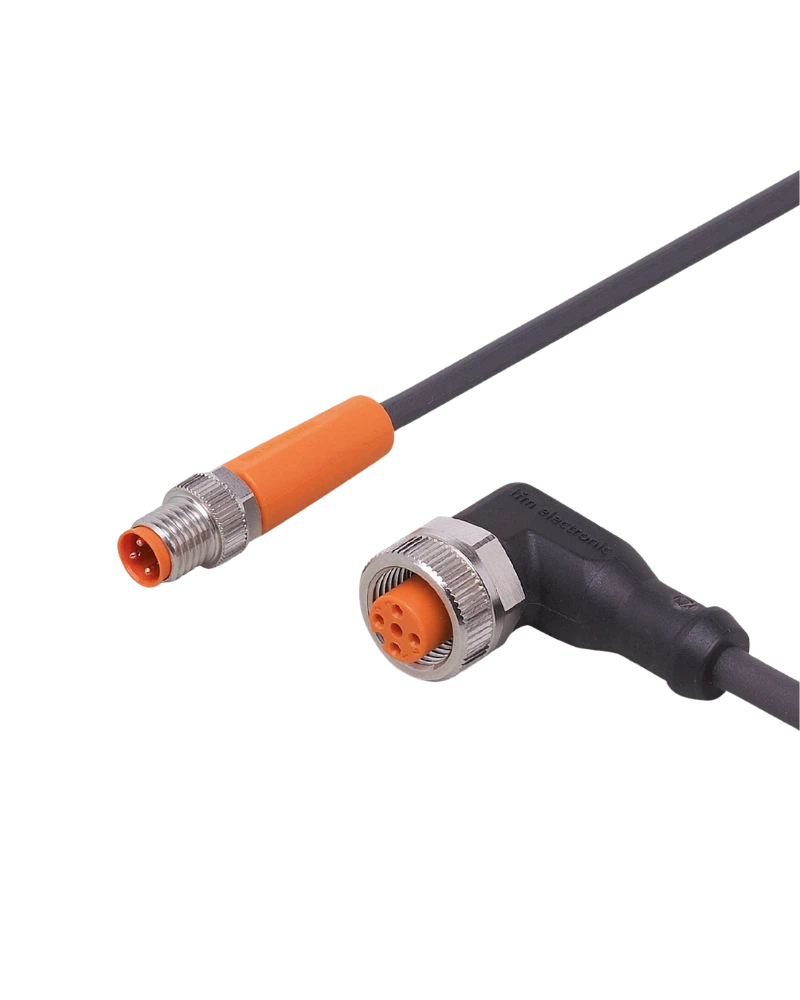

The EVC253 provides M8 plug to M12 socket connectivity. Its 2 m cable length provides additional installation flexibility. The straight and angled connector arrangement supports different mounting requirements. It is suitable for connecting sensors to automation equipment.
Stable PNP Operation
The cable is designed for 10–36 V DC PNP applications. Its three-core PUR cable supports common sensor wiring configurations. Gold-plated contacts provide dependable signal transmission. The robust connector design supports continuous industrial operation.
High Protection Rating
The EVC253 provides IP65, IP67, IP68 and IP69K protection. It operates between -25 and 90°C. TPU housing and FKM sealing provide additional protection. Drag-chain suitability makes it suitable for moving applications.
M8 plug / M12 socket
2 m PUR cable
3 × 0.34 mm² construction
DC PNP electrical design
10–36 V DC operation
Gold-plated contacts
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
High resistance to vibration and shock
Factory automation
Industrial sensors
Machine tools
Sensor-actuator connections
Control and monitoring systems
Moving machinery
| Specification | Details |
|---|---|
| Product Model | EVC253 |
| Manufacturer | IFM |
| Part Number | VDOAH032MSS0002H03STGF030MSS |
| Product Type | Connection cable |
| Connector | M8 plug / M12 socket |
| Number of Pins | 3 |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Drag Chain Suitable | Yes |
| Weight | Approx. 78.9 g |
