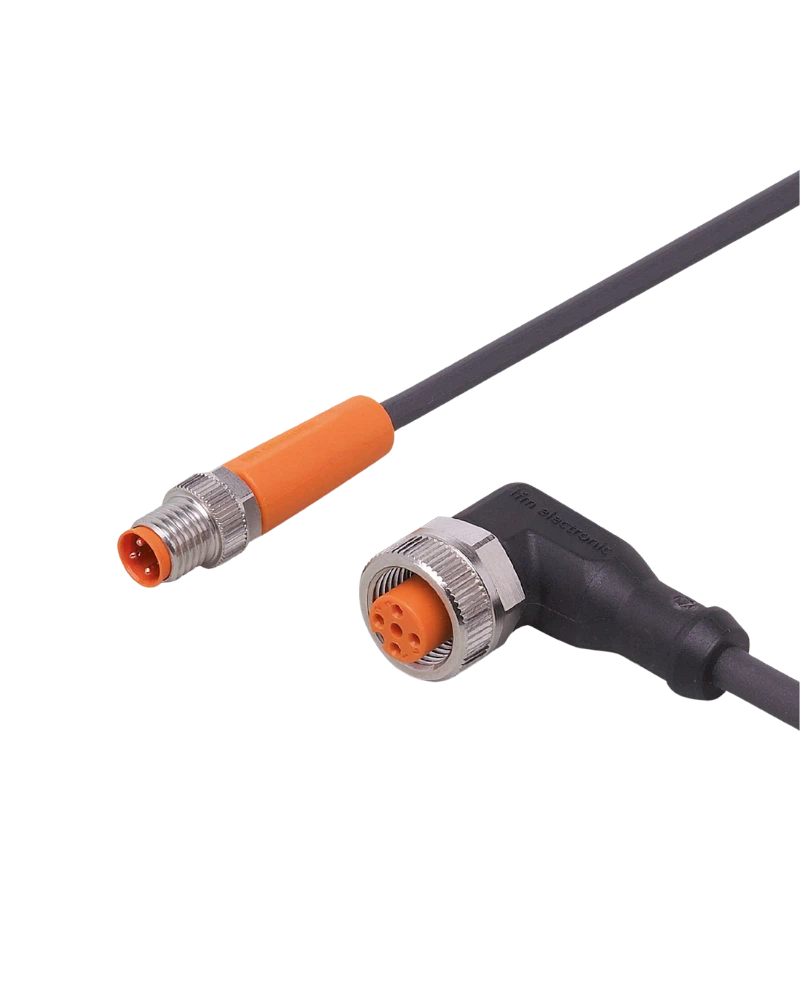

IFM EVC252 is an M8-to-M12 connection cable designed for reliable sensor and actuator connections. It provides a 1 m PUR cable with a three-core PNP configuration. Gold-plated contacts support stable signal transmission. Its high IP protection makes it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Connection
The EVC252 connects compatible M8 and M12 components in industrial automation systems. Its 1 m length provides convenient connection between nearby devices. The straight connector arrangement supports simple installation. Gold-plated contacts help maintain reliable connectivity.
PNP Electrical Performance
The cable is designed for DC PNP applications with 10–36 V DC operation. Its three-core cable construction supports standard sensor wiring. Integrated LED indicators provide convenient status visibility. This makes troubleshooting easier during machine operation.
Robust Industrial Design
PUR cable, TPU housing and FKM sealing provide durability. The cable supports IP65, IP67, IP68 and IP69K protection. It is suitable for drag-chain applications. The construction is designed for vibration and movement.
M8 plug / M12 socket
1 m cable length
3 × 0.34 mm² PUR cable
DC PNP electrical design
10–36 V DC
Gold-plated contacts
IP65 / IP67 / IP68 / IP69K
Yellow and green LED indicators
Drag-chain suitable
Industrial automation
Sensor and actuator wiring
Machine tools
Factory automation
Control systems
Moving machine applications
| Specification | Details |
|---|---|
| Product Model | EVC252 |
| Manufacturer | IFM |
| Part Number | VDOAH032MSS0001H03STGF030MSS |
| Product Type | Connection cable |
| Connector | M8 plug / M12 socket |
| Number of Pins | 3 |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Drag Chain Suitable | Yes |
| Weight | Approx. 59.1 g |
