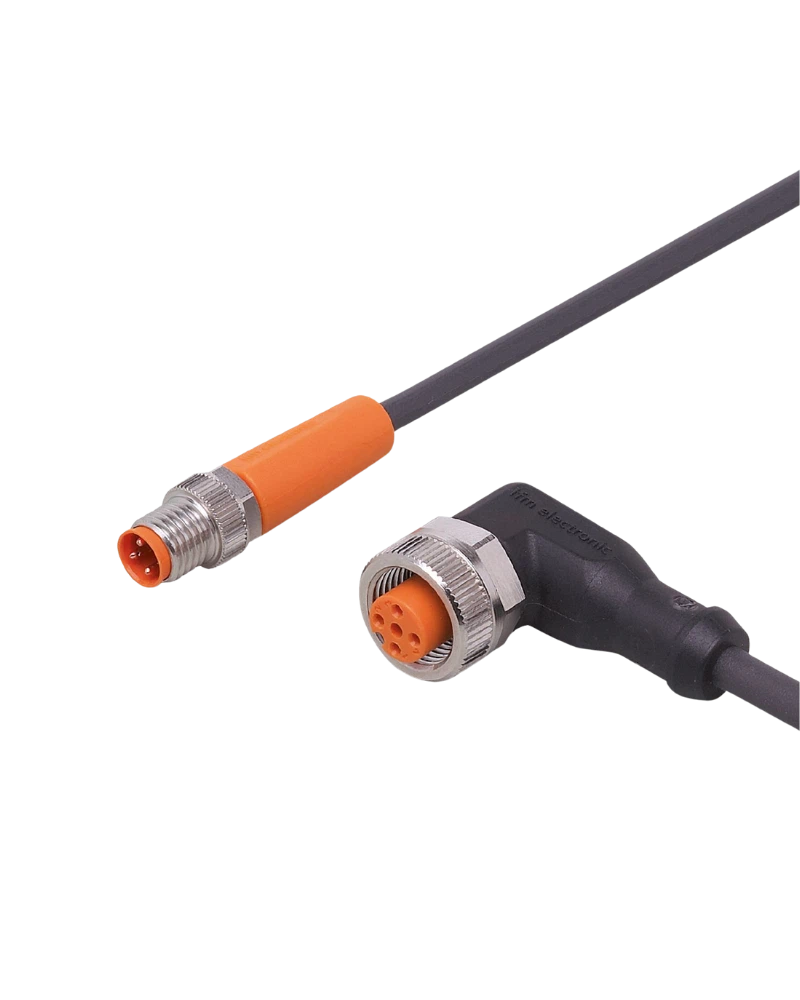

IFM EVC251 is a compact M8-to-M12 connection cable designed for sensor and actuator connectivity. It features a 0.6 m PUR cable with three conductors and PNP electrical design. Gold-plated contacts provide reliable signal transmission. The cable is designed for demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M8 to M12 Connectivity
The EVC251 connects an M8 plug to an M12 socket. It provides a practical interface between compatible sensors and automation components. The compact 0.6 m length is useful for short-distance connections. The connector arrangement supports easy machine installation.
PNP Sensor Applications
The cable supports DC PNP electrical applications from 10 to 36 V DC. Its three-core construction is suitable for common sensor wiring. LED indicators provide output and operating-status visibility. Gold-plated contacts help maintain reliable electrical connections.
Industrial Durability
The EVC251 uses PUR cable, TPU housing and FKM sealing. It offers IP65, IP67, IP68 and IP69K protection. The cable is resistant to demanding operating conditions. It is also suitable for drag-chain applications.
M8 plug / M12 socket
0.6 m PUR cable
3-core construction
DC PNP design
10–36 V DC
Gold-plated contacts
IP65 / IP67 / IP68 / IP69K
Yellow output LED and green power LED
Drag-chain suitable
Industrial sensors
Sensor-actuator connections
Factory automation
Machine tools
Control and monitoring systems
Moving machinery
| Specification | Details |
|---|---|
| Product Model | EVC251 |
| Manufacturer | IFM |
| Part Number | VDOAH032MSS00,6H03STGF030MSS |
| Product Type | Connection cable |
| Connector 1 | M8 plug |
| Connector 2 | M12 socket |
| Number of Pins | 3 |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Nut Material | Brass, nickel-plated |
| Drag Chain Suitable | Yes |
| Weight | 44.3 g |
