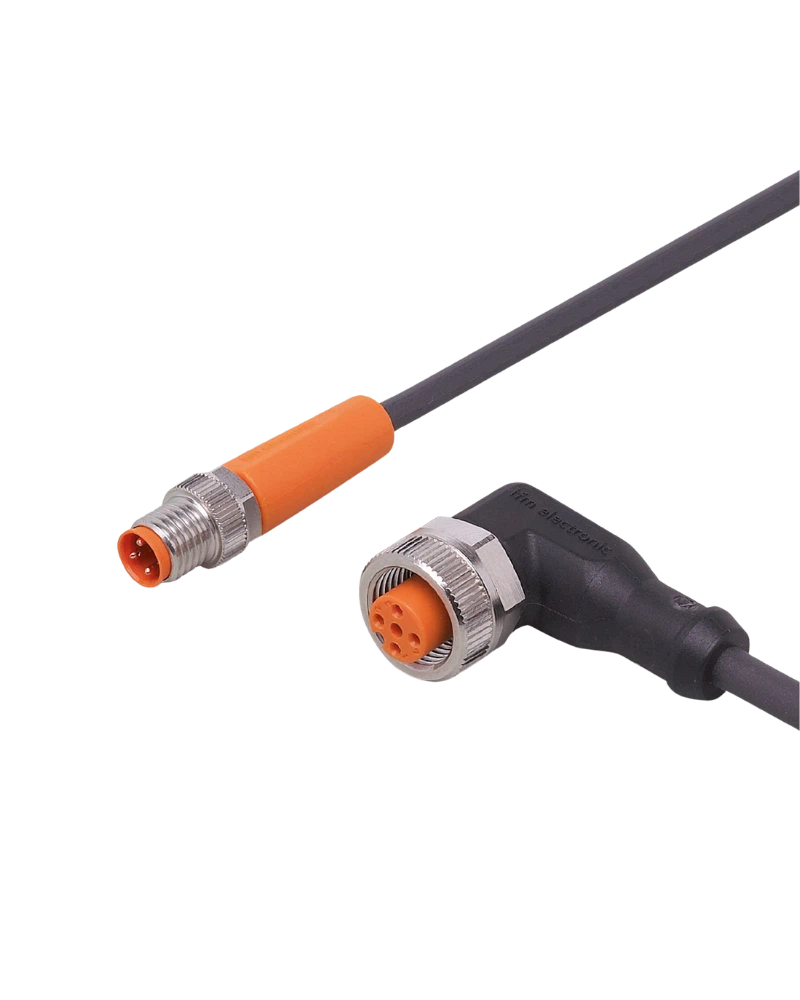

EVC250 is a compact 0.3 m M8-to-M12 connection cable with integrated LED status indication. It uses a 3-pole M8 plug and angled M12 socket for industrial automation connections. The PNP design operates from 10–36 V DC and provides clear yellow and green LED indication. PUR construction, high IP protection and oil/coolant resistance support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC250 provides clear visual status information directly at the connection point. A yellow LED indicates output status while a green LED indicates operating condition. The LEDs remain visible even in bright industrial environments. This simplifies diagnostics and maintenance.
The cable is designed for DC PNP applications with a 10–36 V DC operating voltage. Its 3-pole configuration supports compatible sensor and automation equipment. Gold-plated contacts provide reliable electrical transmission. The design is suitable for industrial control systems.
The 0.3 m cable is suitable for compact installations where components are positioned close together. PUR construction provides flexibility and durability. The angled M12 socket helps simplify cable routing. The short length minimizes unnecessary cable loops.
EVC250 provides IP65/IP67/IP68/IP69K protection and resistance to oils and coolants. Its locking mechanism supports vibration and shock resistance. FKM sealing protects the connection from harsh environmental conditions. Drag-chain suitability supports dynamic applications.
0.3 m cable length
M8 straight plug
M12 angled socket
3-pole connection
PNP output
10–36 V DC operation
Yellow output LED
Green operating LED
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
PNP sensor connections
Industrial automation
Machine diagnostics
Sensor status monitoring
Factory automation
Machine tools
Production machinery
Control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable with LED |
| Model | VDOAH032MSS00,3H03STGF030MSS |
| Cable Length | 0.3 m |
| Connector A | M8 Plug, Straight |
| M8 Contacts | 3 |
| Connector B | M12 Socket, Angled |
| M12 Contacts | 3 |
| Coding | A |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Maximum Current | 3 A |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| LED Output Status | 1 × Yellow LED |
| LED Operating Status | 1 × Green LED |
| Housing | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing | FKM |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Protection Class | III |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
