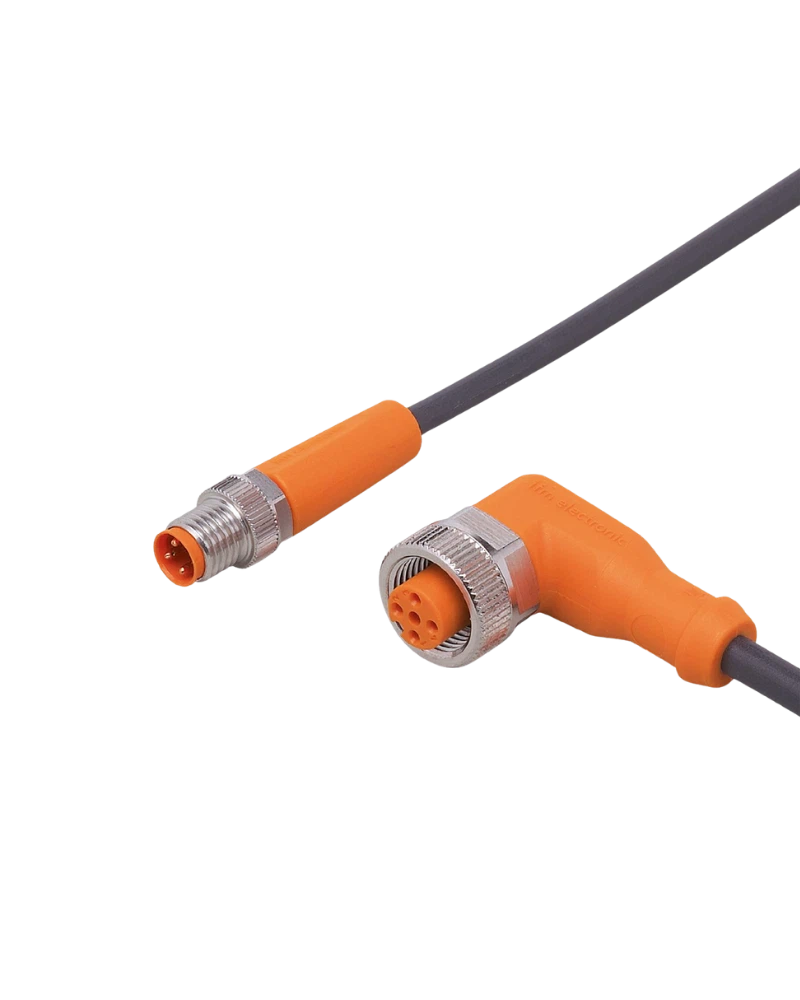

EVC249 is a 5 m M8-to-M12 connection cable designed for extended industrial automation connectivity. Its 3-pole M8 plug and angled 5-pole M12 socket provide reliable machine-level connections. The PUR cable is halogen-free, silicone-free and resistant to demanding industrial conditions. Its extended length is suitable for larger machines and distributed sensor systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC249 provides reliable connectivity for industrial sensors and automation devices. The angled M12 socket supports practical cable routing. Gold-plated contacts provide dependable electrical transmission. Secure locking maintains connection stability.
The 5 m cable provides extended routing across larger machines. It allows sensors and control devices to be positioned farther apart. PUR construction supports flexible installation. The longer length can reduce the requirement for extensions.
The PUR cable provides mechanical durability and flexibility. Its halogen-free and silicone-free construction supports industrial environments. The connector assembly is designed for vibration and shock resistance. It is suitable for continuous machine operation.
EVC249 provides IP65/IP67/IP68/IP69K protection. It is resistant to oils and coolants. FKM sealing supports dependable environmental protection. Drag-chain suitability makes it appropriate for moving machinery.
5 m cable length
M8 straight plug
M12 angled socket
3-pole M8
5-pole M12
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
Machine tools
Factory automation
Industrial sensors
Production lines
Conveyor equipment
Actuator systems
Control systems
Large automation machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH030MSS0005H03STGF030MSS |
| Cable Length | 5 m |
| Connector A | M8 Plug, Straight |
| M8 Contacts | 3 |
| Connector B | M12 Socket, Angled |
| M12 Contacts | 5 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
