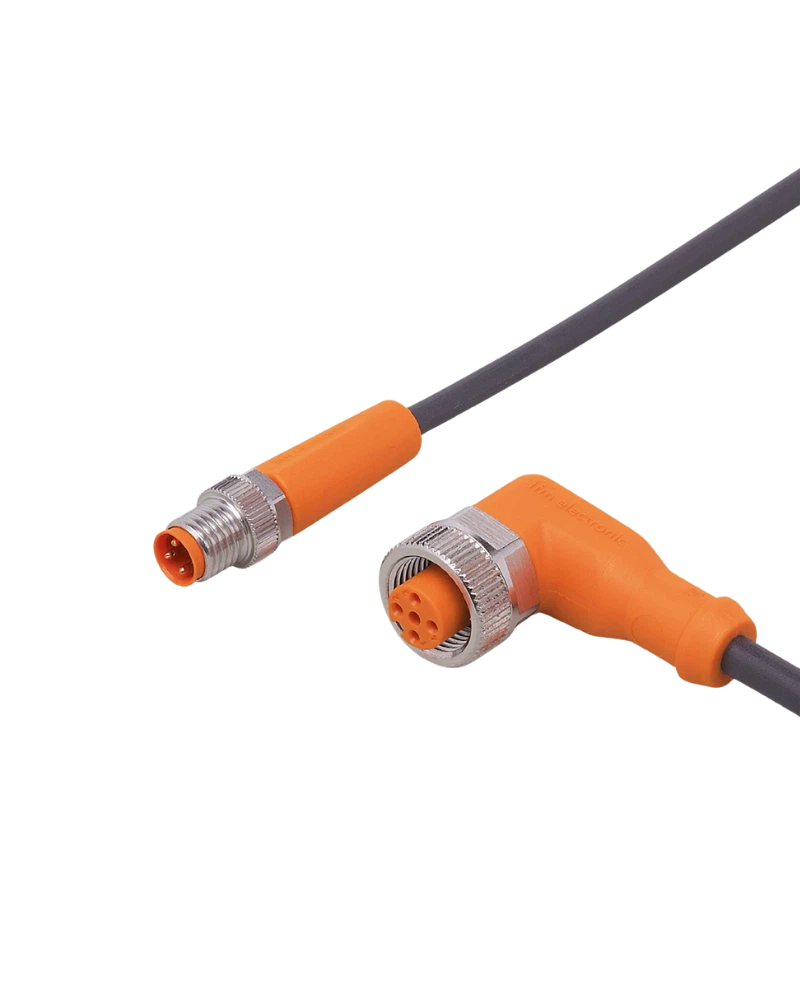

EVC248 is a 2 m M8-to-M12 industrial connection cable designed for sensor and automation systems. It uses a straight 3-pole M8 plug and an angled 5-pole M12 socket. The PUR cable provides flexibility, durability and reliable signal transmission. High IP protection makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC248 provides dependable connectivity between compatible M8 and M12 devices. The angled M12 socket simplifies cable routing within machinery. Gold-plated contacts support reliable electrical transmission. Secure locking helps prevent accidental disconnection.
The 2 m cable length provides flexible routing between machine components. It is suitable for medium-distance sensor connections. PUR construction allows practical installation around equipment. It helps maintain organized cable routing.
The cable is halogen-free and silicone-free. PUR construction provides mechanical flexibility and durability. The connector assembly supports vibration and shock resistance. This makes it suitable for continuous industrial operation.
The cable supports IP65/IP67/IP68/IP69K protection. It is resistant to oils and coolants. FKM sealing helps protect the connection from environmental contamination. Drag-chain suitability supports dynamic machine applications.
2 m cable length
M8 straight plug
M12 angled socket
3-pole M8
5-pole M12
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
High IP protection
Drag-chain suitable
Factory automation
Industrial sensors
Machine tools
Production equipment
Actuator systems
Conveyor systems
Automation panels
Industrial machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH030MSS0002H03STGF030MSS |
| Cable Length | 2 m |
| Connector A | M8 Plug, Straight |
| M8 Contacts | 3 |
| Connector B | M12 Socket, Angled |
| M12 Contacts | 5 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
