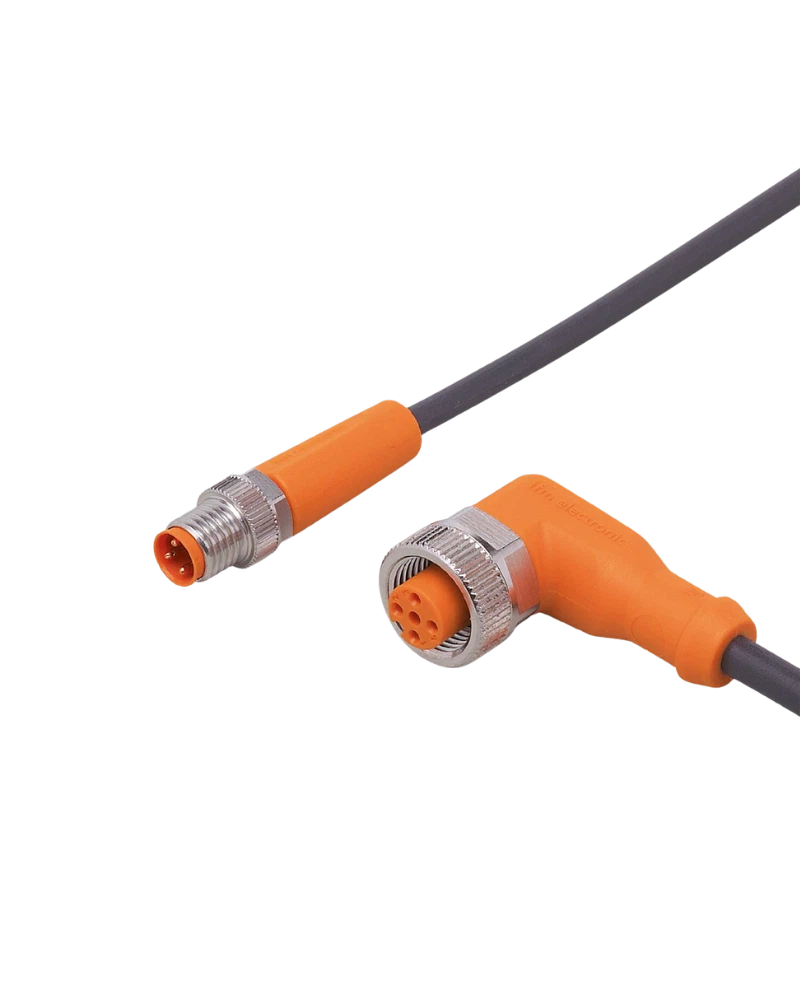

EVC247 is a 1 m M8-to-M12 industrial connection cable designed for automation and sensor applications. It combines a straight 3-pole M8 plug with an angled 5-pole M12 socket. The PUR cable provides flexibility and industrial durability. Its high protection and reliable locking make it suitable for harsh factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC247 provides reliable connectivity between compatible industrial sensor interfaces. The straight M8 plug and angled M12 socket provide practical machine routing. Gold-plated contacts support reliable signal transmission. The locking system provides secure mechanical coupling.
The 1 m length provides practical routing between nearby industrial components. It is suitable for sensors and control equipment installed within the same machine section. PUR construction allows flexible routing. The compact length helps reduce cable clutter.
The cable is halogen-free and silicone-free. PUR material provides mechanical durability and flexibility. Connector materials are designed for demanding industrial use. Vibration and shock resistance support reliable operation.
EVC247 provides IP65/IP67/IP68/IP69K protection. It is suitable for environments exposed to oils, coolants and moisture. The FKM sealing material supports dependable environmental protection. Drag-chain suitability enables use in moving machinery.
1 m cable length
M8 straight plug
M12 angled socket
3-pole M8
5-pole M12
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
High IP protection
Drag-chain suitable
Industrial sensors
Machine tools
Factory automation
Production machinery
Actuator connections
Conveyor systems
Automation equipment
Control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH030MSS0001H03STGF030MSS |
| Cable Length | 1 m |
| Connector A | M8 Plug, Straight |
| M8 Contacts | 3 |
| Connector B | M12 Socket, Angled |
| M12 Contacts | 5 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
