EVC245 is a compact 0.3 m industrial connection cable designed for M8-to-M12 sensor and automation connections. It uses a 3-pole M8 plug with an angled 5-pole M12 socket. The PUR cable provides flexibility and reliable industrial performance. High protection and durable connectors make it suitable for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

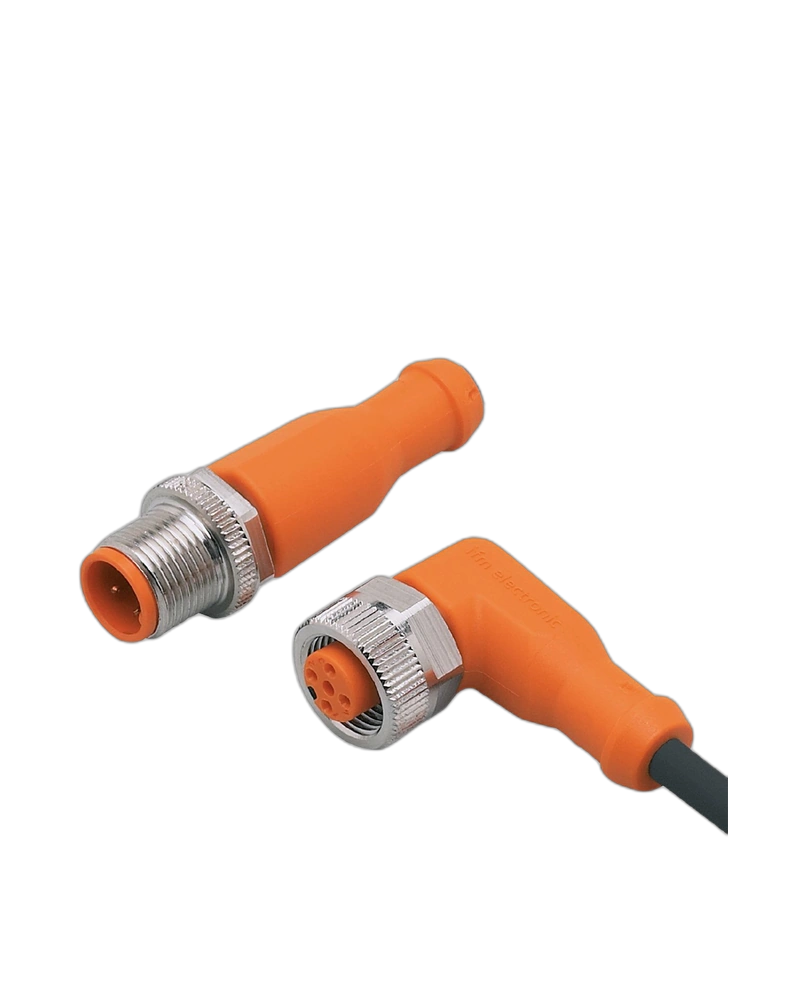

EVC245 provides a practical connection between M8 and M12 automation interfaces. The M8 plug is straight while the M12 socket is angled. Gold-plated contacts support dependable electrical transmission. The locking mechanism helps maintain connection stability.
The 0.3 m cable is ideal for closely positioned sensors and automation components. Its compact length reduces unnecessary wiring. PUR construction supports flexible routing in restricted spaces. It is suitable for compact machine installations.
The cable uses 3 × 0.34 mm² conductors for dependable signal transmission. Gold-plated contacts help maintain electrical performance. The cable is halogen-free and silicone-free. It is designed for continuous industrial use.
EVC245 supports IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. Vibration and shock resistance supports demanding machine environments. Drag-chain suitability provides additional flexibility for moving applications.
0.3 m cable length
M8 plug
M12 socket
3-pole M8 connection
5-pole M12 connection
Angled M12 socket
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
Drag-chain suitable
Industrial sensors
Factory automation
Machine tools
Sensor connections
Actuator systems
Compact machinery
Production equipment
Automation panels
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH030MSS00,3H03STGF030MSS |
| Cable Length | 0.3 m |
| Connector A | M8 Plug, Straight |
| M8 Contacts | 3 |
| Connector B | M12 Socket, Angled |
| M12 Contacts | 5 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain | Yes |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
