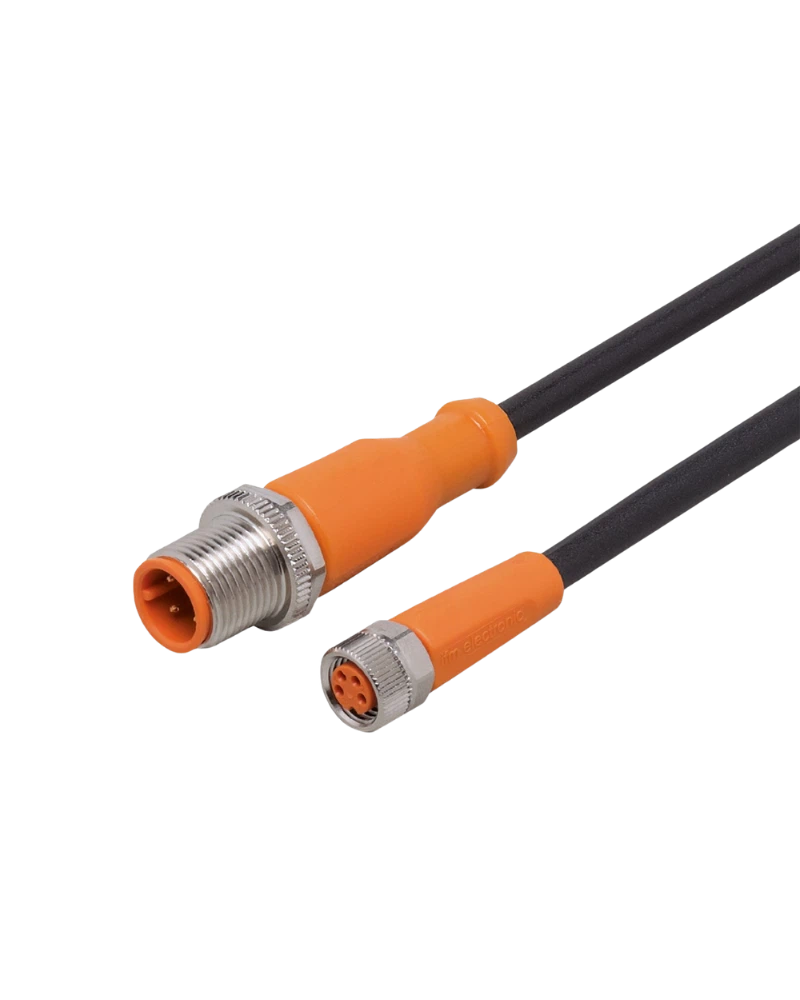

EVC244 is a 5 m industrial M12-to-M8 connection cable for extended automation and sensor connections. It features a 4-pole interface with gold-plated contacts for reliable signal transmission. The PUR cable is flexible, halogen-free and designed for industrial environments. Its long cable length provides greater routing flexibility across machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC244 provides reliable connectivity between compatible industrial devices. The 4-pole configuration supports automation sensor and actuator applications. Gold-plated contacts provide dependable electrical transmission. Secure locking supports stable machine operation.
The 5 m cable is suitable for larger machinery and distributed equipment. It provides extended routing without requiring additional cable extensions. PUR construction allows flexible cable installation. The cable supports clean and practical machine wiring.
The cable uses PUR material with a halogen-free design. The connector housing is made for demanding industrial use. The connection system supports vibration and shock resistance. It is suitable for continuous factory operation.
The cable is resistant to oils and coolants. High protection helps protect against moisture and contamination. The FKM sealing system provides dependable environmental protection. It is suitable for machine tools and harsh industrial applications.
5 m cable length
M12-to-M8 connection
4-pole configuration
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65 / IP67 / IP68 / IP69K
Vibration resistant
Shock resistant
Drag-chain suitable
Machine tools
Factory automation
Industrial sensors
Production lines
Conveyor systems
Actuator equipment
Control systems
Industrial machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS0005H04STGH040MSS |
| Cable Length | 5 m |
| Connection | M12 Plug to M8 Socket |
| Contacts | 4 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | 3 A |
| Ambient Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
