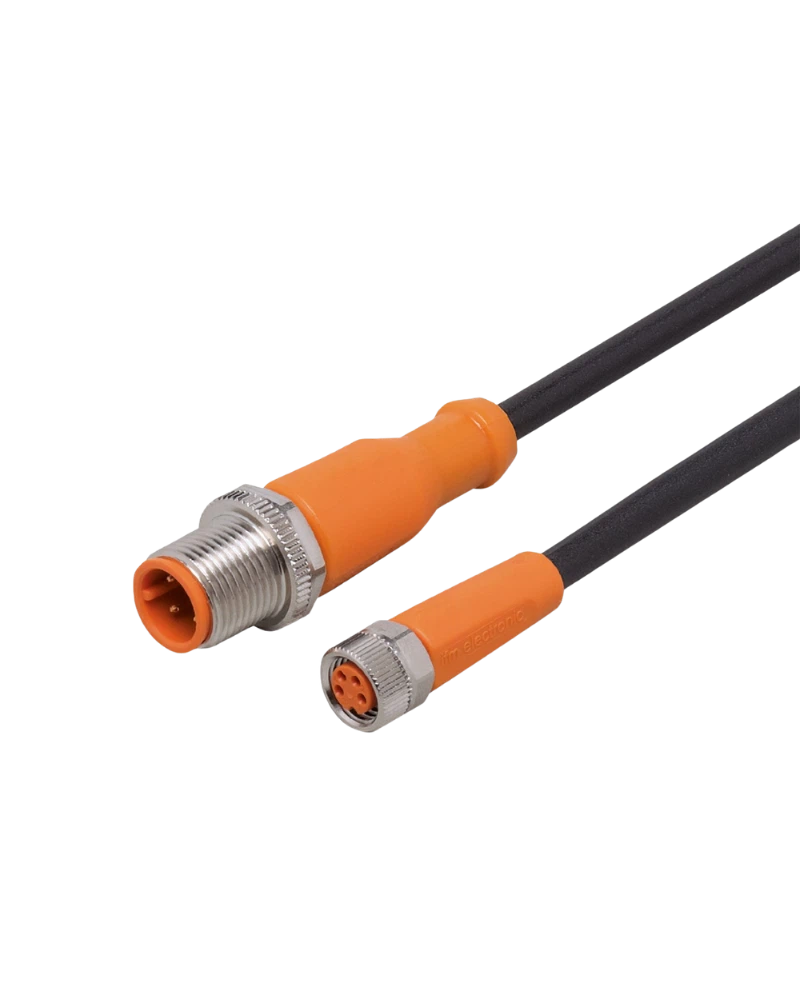

EVC243 is a 2 m M12-to-M8 industrial connection cable designed for dependable automation connectivity. Its 4-pole configuration supports reliable connections between compatible sensors and control devices. The PUR cable provides flexibility and mechanical durability. High protection makes it suitable for demanding factory and machine-tool environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC243 provides a reliable 4-pole M12-to-M8 connection for automation equipment. Gold-plated contacts support stable electrical transmission. Secure locking helps prevent unwanted disconnection. It is suitable for industrial sensor and actuator systems.
The 2 m cable provides additional routing distance compared with compact variants. It is suitable when sensors and control components are positioned farther apart. PUR construction supports flexible machine routing. The cable helps maintain organized wiring.
The cable is made from durable PUR material. It is halogen-free and silicone-free for industrial applications. The connector assembly supports vibration and shock resistance. It is suitable for continuous operation in production environments.
EVC243 is designed for environments involving oils, coolants and mechanical stress. High IP protection helps protect the connection. The mechanical end stop protects the sealing system. This makes it suitable for machine tools and factory automation.
2 m cable length
M12-to-M8 connection
4-pole interface
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65 / IP67 / IP68 / IP69K
Vibration resistant
Shock resistant
Drag-chain suitable
Factory automation
Machine tools
Industrial sensors
Production machinery
Actuator systems
Conveyor equipment
Control systems
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS0002H04STGH040MSS |
| Cable Length | 2 m |
| Connection | M12 Plug to M8 Socket |
| Contacts | 4 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | 3 A |
| Ambient Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
