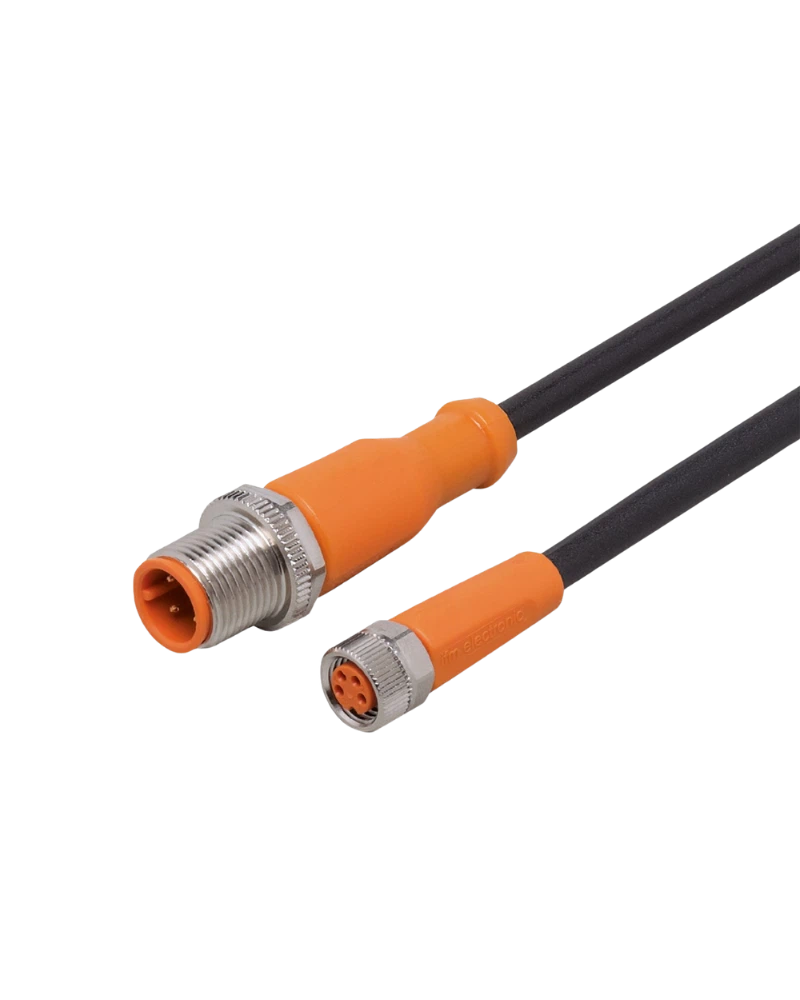

EVC242 is a 1 m industrial connection cable designed for reliable M12-to-M8 connectivity in automation systems. It features a 4-pole interface with gold-plated contacts for dependable signal transmission. The PUR, halogen-free cable provides flexibility and durability. It is suitable for factory automation, machine tools and industrial sensor applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC242 provides a secure connection between compatible M12 and M8 automation devices. The 4-pole configuration supports reliable industrial signal transmission. Gold-plated contacts help maintain electrical performance. The locking mechanism provides a stable connection during operation.
The 1 m cable length is suitable for compact machine installations. It provides enough routing flexibility between nearby sensors and control components. PUR construction allows practical cable management. The cable helps keep installations clean and organized.
The cable is designed for demanding industrial applications. Its PUR construction provides mechanical flexibility and durability. The halogen-free and silicone-free design supports industrial installation requirements. It is suitable for continuous machine operation.
EVC242 is resistant to oils and coolants and provides high environmental protection. The connector is designed for vibration and shock resistance. A mechanical stop protects the sealing O-ring. It is suitable for harsh industrial environments.
1 m cable length
M12-to-M8 connection
4-pole configuration
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65 / IP67 / IP68 / IP69K
Vibration resistant
Shock resistant
Drag-chain suitable
Industrial sensors
Factory automation
Machine tools
Actuator connections
Production machinery
Conveyor systems
Control equipment
Industrial automation
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS0001H04STGH040MSS |
| Cable Length | 1 m |
| Connection | M12 Plug to M8 Socket |
| Connector Contacts | 4 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Contact Material | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | 3 A |
| Ambient Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
