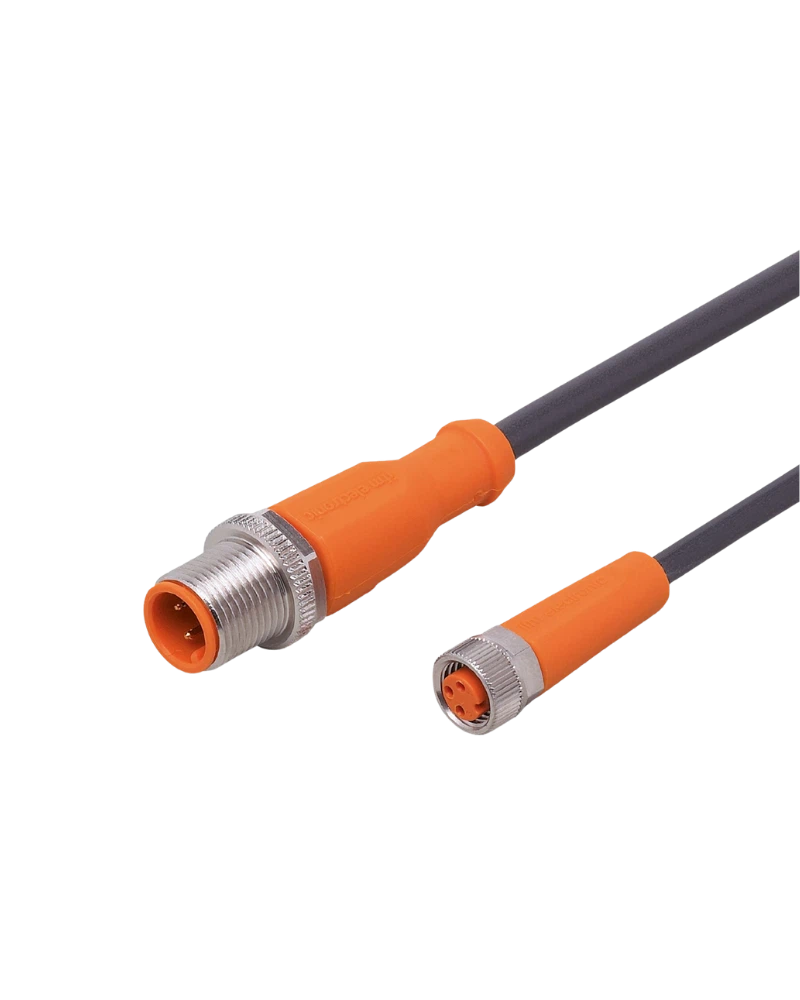

EVC224 is a 5 m M12-to-M8 industrial connection cable designed for extended sensor and automation connections. It combines a 3-pole M12 connector with a 4-pole M8 socket. The PUR halogen-free cable provides durable industrial performance. High protection against environmental conditions supports demanding production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC224 provides a longer connection path between sensors and automation equipment. The M12-to-M8 configuration supports compatible industrial devices. The 3-pole and 4-pole interfaces provide reliable signal connectivity. It is suitable for larger machine layouts.
The 5 m cable provides flexible routing over longer machine distances. It can reduce the requirement for additional extensions. PUR construction supports flexible installation. The cable helps maintain clean and efficient machine wiring.
Gold-plated contacts provide dependable signal transmission. Secure connector locking helps maintain connection integrity. The cable is designed for continuous industrial use. It is suitable for automation and control equipment.
The cable provides IP67/IP68/IP69K protection. It is suitable for environments exposed to moisture, oils and coolants. The robust construction supports vibration and mechanical stress. This makes it suitable for demanding industrial machinery.
5 m cable length
M12 3-pole connector
M8 4-pole socket
PUR cable
Halogen-free
Gold-plated contacts
Oil and coolant resistant
IP67 / IP68 / IP69K
Long-distance machine connectivity
Secure locking
Industrial durability
Reliable signal transmission
Large machinery
Machine tools
Factory automation
Sensor networks
Production lines
Actuator systems
Conveyor equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS0005H03STGH030MSS |
| Cable Length | 5 m |
| Connector A | M12 Plug |
| Connector B | M8 Socket |
| M12 Contacts | 3 |
| M8 Contacts | 4 |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Cable Type | Halogen-free |
| M12 Voltage | 250 V AC / 300 V DC |
| M8 Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | CuZn / nickel-plated |
| Sealing | FKM |
| M8 Torque | 0.3–0.5 Nm |
| M12 Torque | 0.6–1.5 Nm |
| Application | Industrial |
| Pack Quantity | 1 pc |
