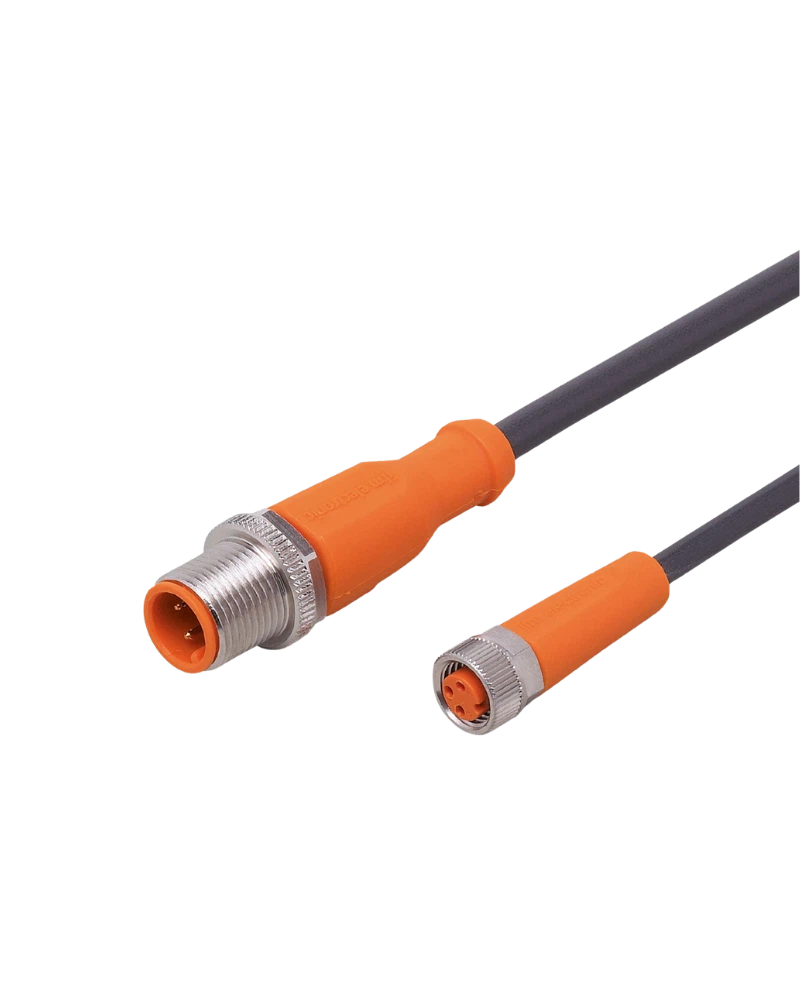

EVC223 is a 2 m M12-to-M8 connection cable designed for industrial automation and sensor connectivity. Its 3-pole M12 connector and 4-pole M8 socket provide reliable device interfacing. The PUR cable offers flexibility and durability for industrial installations. High environmental protection makes it suitable for demanding machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC223 connects compatible M12 and M8 devices in automation applications. Its multi-contact configuration supports sensor and actuator connectivity. Secure connectors help maintain stable electrical connections. The design simplifies machine-level installation.
The 2 m length provides additional routing flexibility across machine components. It is useful when sensors and control equipment are positioned farther apart. PUR construction provides flexibility without compromising durability. The cable helps maintain organized wiring.
The cable uses black PUR material and a halogen-free construction. Robust connector materials support industrial operation. Gold-plated contacts help maintain reliable electrical transmission. The cable is suitable for continuous machine operation.
High IP protection supports use in dusty and wet industrial environments. Resistance to oils and coolants makes it suitable for machine-tool applications. Secure sealing helps prevent environmental contamination. The construction supports reliable operation under demanding conditions.
2 m cable length
M12 3-pole connector
M8 4-pole socket
PUR cable
Halogen-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP67 / IP68 / IP69K
Vibration resistant
Secure locking
Industrial-grade construction
Factory automation
Industrial sensors
Machine tools
Actuators
Production lines
Control equipment
Conveyor systems
Automation machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS0002H03STGH030MSS |
| Cable Length | 2 m |
| Connector A | M12 Plug |
| Connector B | M8 Socket |
| M12 Contacts | 3 |
| M8 Contacts | 4 |
| Cable Material | PUR |
| Cable Construction | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Cable Type | Halogen-free |
| M12 Voltage | 250 V AC / 300 V DC |
| M8 Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | CuZn / nickel-plated |
| Sealing | FKM |
| M8 Torque | 0.3–0.5 Nm |
| M12 Torque | 0.6–1.5 Nm |
| Application | Industrial |
| Pack Quantity | 1 pc |
