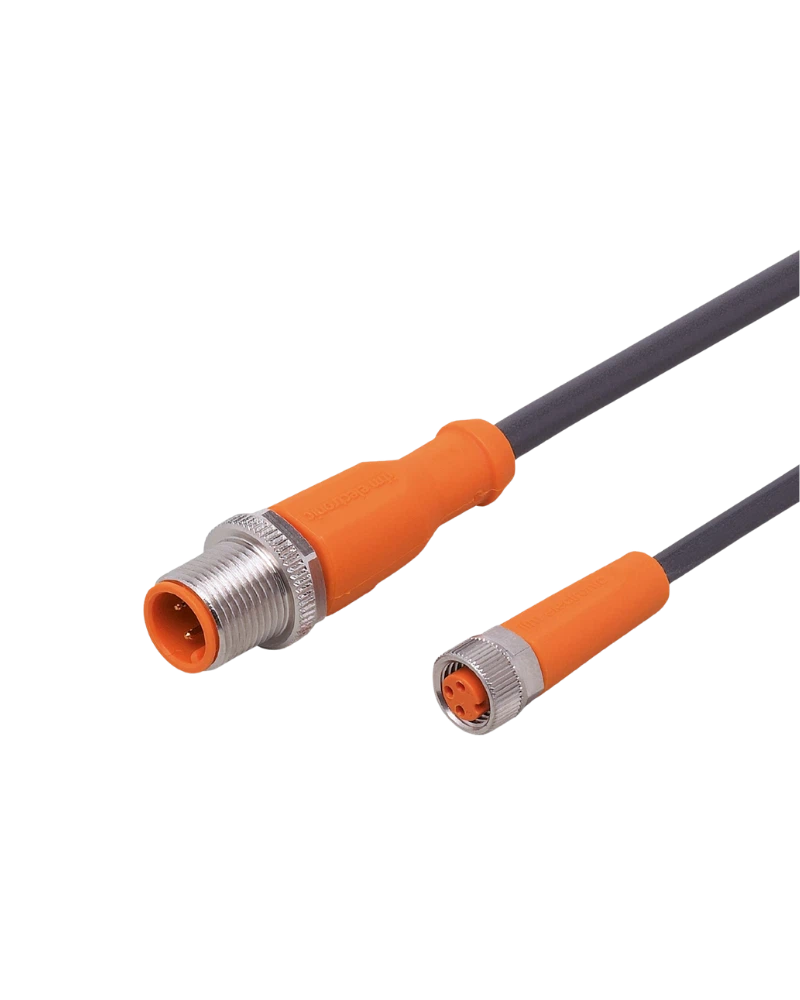

EVC222 is a 1 m industrial connection cable designed to connect M12 and M8 interfaces in automation systems. It features a 3-pole M12 connector and 4-pole M8 socket configuration. The PUR cable is halogen-free and designed for reliable industrial use. Its robust construction supports sensor, actuator and machine-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC222 provides a reliable interface between compatible M12 and M8 industrial devices. The 3-pole M12 connector and 4-pole M8 socket support standard automation connections. The connector design enables secure and convenient installation. It is suitable for sensor and actuator wiring.
The 1 m cable length provides practical routing between nearby machine components. PUR cable construction provides flexibility and mechanical durability. The compact length helps minimize unnecessary cable loops. It is suitable for organized machine wiring.
The cable is designed for industrial environments where moisture, dust, oils and coolants may be present. High IP protection helps protect the connection. The robust connector construction supports vibration and shock resistance. This makes it suitable for demanding automation installations.
Gold-plated contacts provide dependable electrical transmission. The cable supports continuous industrial operation. Secure locking components help prevent accidental disconnection. It provides a practical connection solution for factory automation.
1 m cable length
M12 3-pole connector
M8 4-pole socket
PUR cable
Halogen-free construction
Gold-plated contacts
Oil and coolant resistant
High IP protection
Robust industrial construction
Reliable signal transmission
Compact cable routing
Suitable for automation systems
Industrial sensors
Actuator connections
Factory automation
Machine tools
Production machinery
Control systems
Conveyor equipment
Industrial automation panels
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS0001H03STGH030MSS |
| Cable Length | 1 m |
| Connector A | M12 Plug |
| Connector B | M8 Socket |
| M12 Contacts | 3 |
| M8 Contacts | 4 |
| Cable Material | PUR |
| Cable Construction | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Cable Type | Halogen-free |
| M12 Operating Voltage | 250 V AC / 300 V DC |
| M8 Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Operating Temperature | -25°C to +90°C |
| Protection | IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Locking Material | CuZn, nickel-plated |
| Sealing | FKM |
| M8 Tightening Torque | 0.3–0.5 Nm |
| M12 Tightening Torque | 0.6–1.5 Nm |
| Application | Industrial |
| Pack Quantity | 1 pc |
