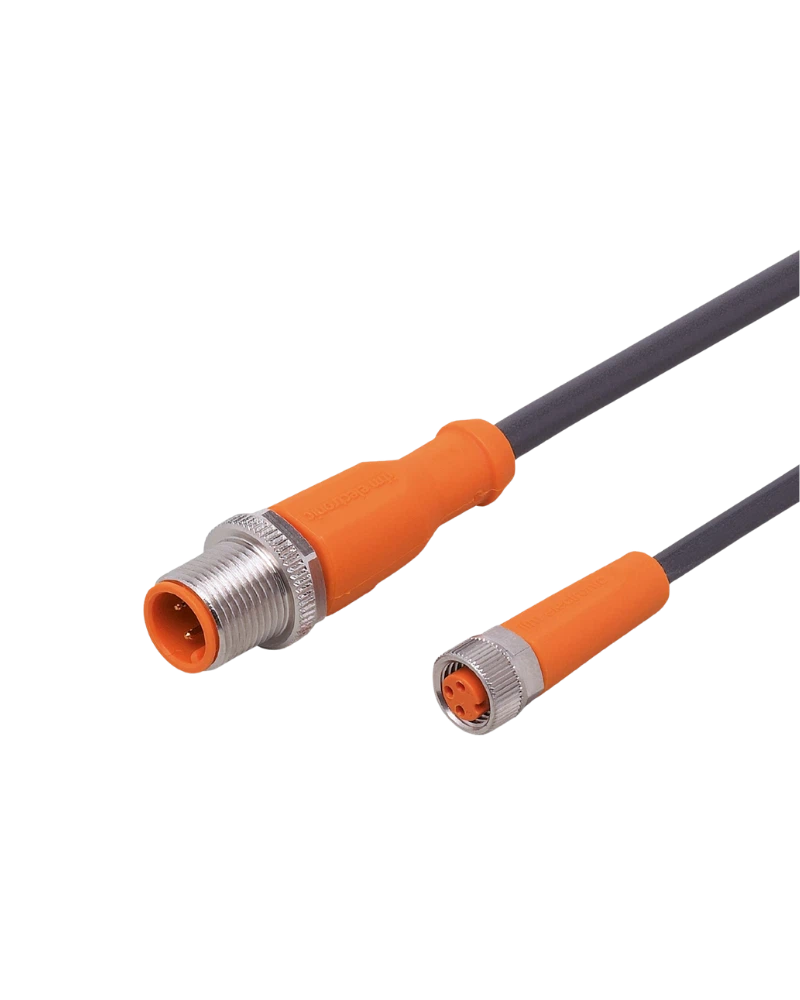

EVC221 is a 0.6 m M12-to-M8 connection cable designed for compact industrial automation applications. It provides a 3-pole connection with gold-plated contacts and a PUR halogen-free cable. The cable is designed for low-voltage industrial applications with high environmental protection. Drag-chain suitability supports reliable operation in moving machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC221 provides a standardized M12-to-M8 interface for industrial sensors and automation devices. The 3-pole configuration supports compact signal connections. Gold-plated contacts provide reliable electrical transmission. Secure connectors support stable machine operation.
The 0.6 m length provides additional flexibility compared with the 0.3 m variant. It is suitable for connections between nearby machine components. PUR cable construction provides flexibility and durability. The compact length keeps machine wiring organized.
The cable is designed for less than 50 V AC and less than 60 V DC. Its maximum total current load is 3 A. Protection Class III supports low-voltage industrial applications. Gold-plated contacts help maintain reliable signal transmission.
EVC221 is suitable for harsh industrial environments involving oils and coolants. IP65, IP67, IP68 and IP69K protection helps protect the connection. Drag-chain suitability supports repeated machine movement. More than 5 million bending cycles provide high mechanical durability.
0.6 m cable length
M12-to-M8 connection
3-pole configuration
Straight connectors
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
<50 V AC
<60 V DC
3 A maximum current
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Industrial sensors
Machine tools
Compact machinery
Actuator systems
Factory automation
Control equipment
Dynamic production systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS00,6H03STGH030MSS |
| Cable Length | 0.6 m |
| Connector A | M12 plug |
| Connector B | M8 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Cable Colour | Black |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current Load | 3 A |
| Temperature | -25°C to +90°C |
| cULus Temperature | Up to 75°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| M12 Tightening Torque | 0.6–1.5 Nm |
| M8 Tightening Torque | 0.3–0.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Product-specific |
| Pack Quantity | 1 pc |
