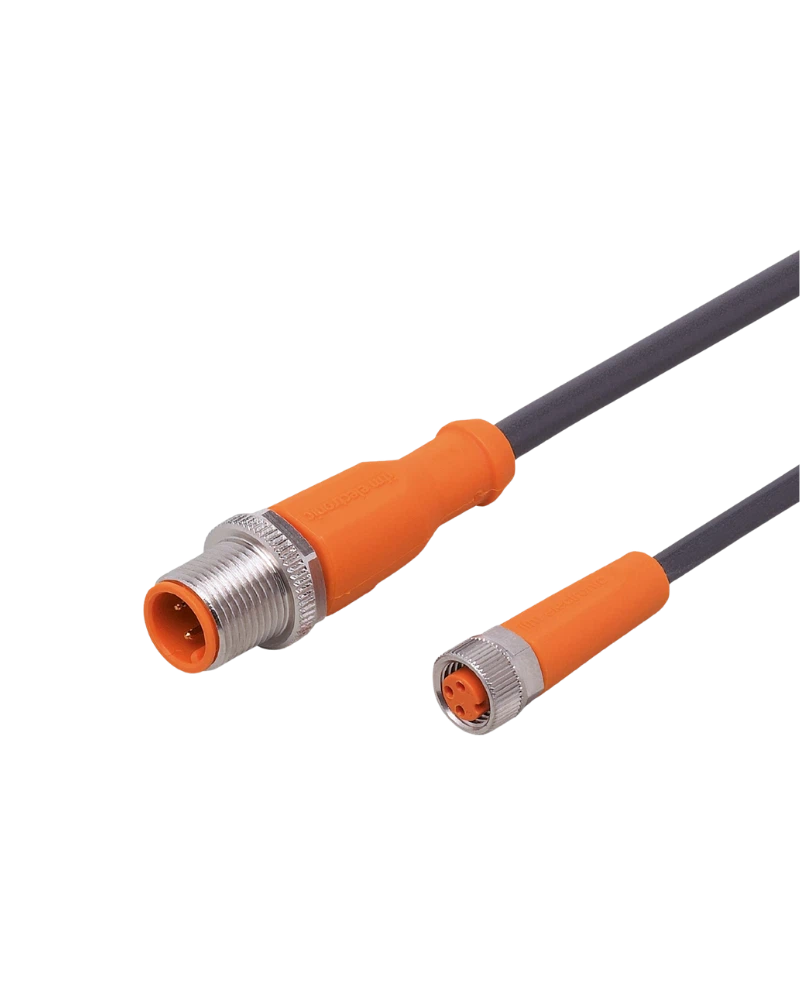

EVC220 is a compact 0.3 m M12-to-M8 connection cable designed for industrial sensor and automation applications. It features 3 gold-plated contacts and a PUR halogen-free cable. The cable supports less than 50 V AC and less than 60 V DC with a 3 A maximum current load. High IP protection and drag-chain suitability support reliable operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC220 provides a direct connection between M12 and M8 industrial interfaces. The 3-pole configuration is suitable for compact sensor connections. Gold-plated contacts support reliable electrical transmission. Straight connectors simplify machine installation.
The 0.3 m length is ideal for closely positioned industrial components. It helps reduce cable loops and unnecessary wiring. PUR construction provides flexibility and durability. The compact design is useful in space-restricted installations.
EVC220 supports less than 50 V AC and less than 60 V DC. The maximum total current load is 3 A. Gold-plated contacts support stable electrical performance. Protection Class III makes it suitable for low-voltage industrial applications.
The cable provides IP65, IP67, IP68 and IP69K protection. It is suitable for oils and coolants. Drag-chain suitability supports repeated movement. The product supports more than 5 million bending cycles.
0.3 m cable length
M12-to-M8 connection
3-pole configuration
Straight M12 connector
Straight M8 connector
Gold-plated contacts
PUR cable
Halogen-free
<50 V AC
<60 V DC
3 A maximum current
IP65 / IP67 / IP68 / IP69K
Industrial sensors
Factory automation
Compact machinery
Machine tools
Sensor connections
Control equipment
Actuator systems
Dynamic automation
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF040MSS00,3H03STGH030MSS |
| Cable Length | 0.3 m |
| Connector A | M12 plug |
| Connector B | M8 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Cable Colour | Black |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current Load | 3 A |
| Temperature | -25°C to +90°C |
| cULus Temperature | Up to 75°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| M12 Tightening Torque | 0.6–1.5 Nm |
| M8 Tightening Torque | 0.3–0.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 33.7 g |
| Pack Quantity | 1 pc |
