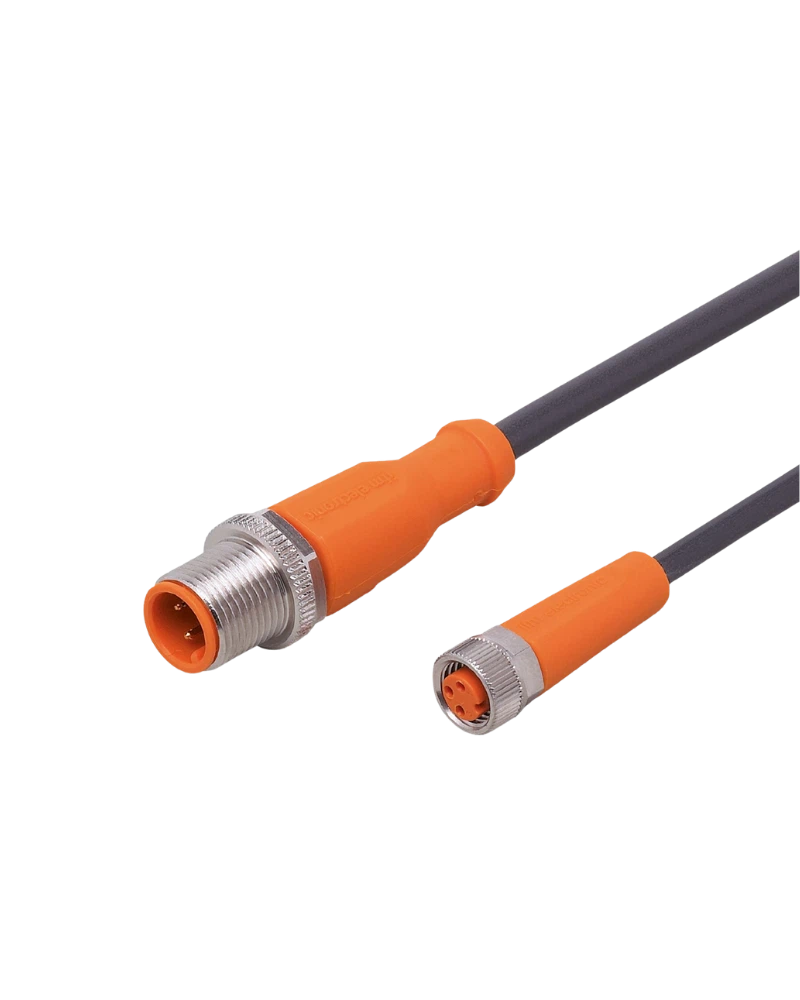

EVC219 is a 5 m M12-to-M8 connection cable designed for extended industrial sensor and automation connectivity. The 3-pole configuration provides reliable signal connections between M12 and M8 devices. Gold-plated contacts and PUR halogen-free cable construction provide durable performance. High protection and drag-chain suitability make it suitable for demanding machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC219 provides a 5 m connection between compatible industrial interfaces. The 3-pole configuration is suitable for sensor and actuator systems. Gold-plated contacts support reliable signal transmission. The standardized connection simplifies field installation.
The 5 m cable provides additional routing distance for larger machine layouts. PUR construction provides flexibility for industrial cable management. The length helps connect devices positioned farther apart. It reduces the need for additional cable extensions.
EVC219 is designed for harsh industrial environments. The cable is resistant to oils and coolants. High IP protection helps protect the connection from environmental exposure. The connector design provides reliable sealing and mechanical stability.
Drag-chain suitability supports automated machinery with repeated movement. The cable construction supports high bending-cycle operation. Correct bending radius helps minimize mechanical stress. It is suitable for moving production equipment.
5 m cable length
M12-to-M8 connection
3-pole design
Straight connectors
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
Oil and coolant resistant
High IP protection
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Industrial sensors
Machine tools
Production lines
Actuator systems
Conveyor equipment
Sensor networks
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF030MSS0005H03STGH030MSS |
| Cable Length | 5 m |
| Connector A | M12 plug |
| Connector B | M8 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
