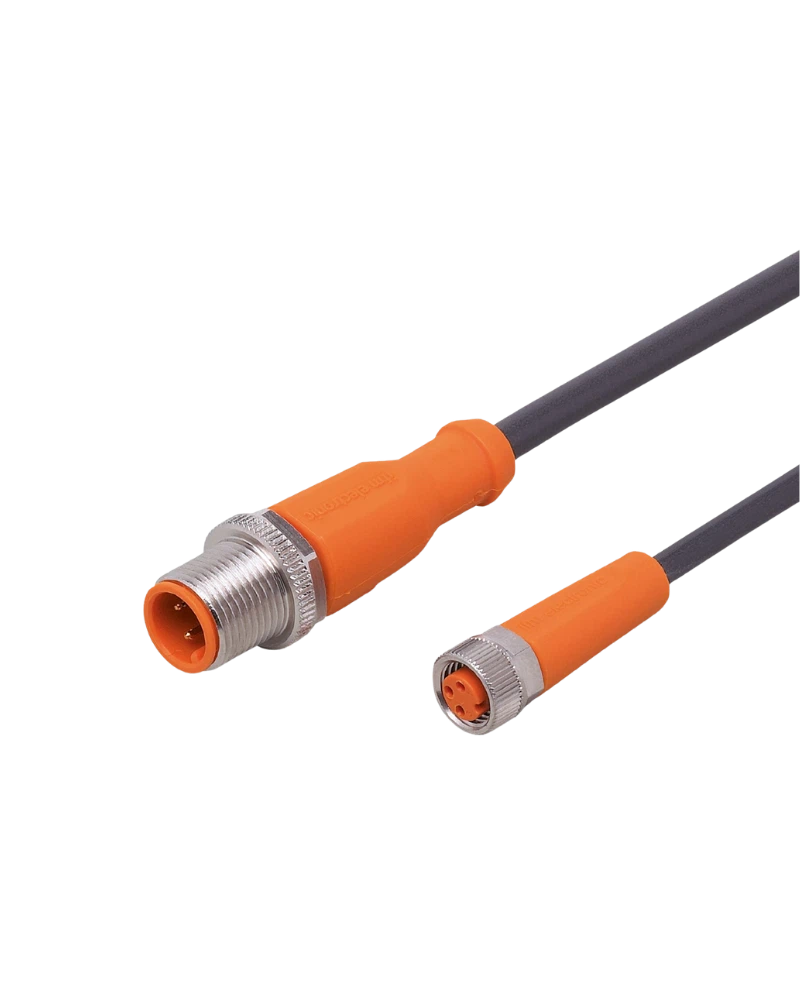

EVC218 is a 2 m M12-to-M8 connection cable designed for industrial automation and sensor applications. It features a 3-pole configuration with gold-plated contacts and PUR halogen-free cable construction. The cable is designed to withstand oils, coolants and demanding industrial conditions. Its drag-chain suitability supports dynamic machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC218 provides reliable connectivity between compatible M12 and M8 devices. The 3-pole design supports compact sensor and actuator applications. Gold-plated contacts help maintain stable electrical performance. Secure locking supports dependable machine operation.
The 2 m cable provides flexible routing across nearby machine components. PUR construction offers flexibility and durability. The length is suitable for installations where 1 m cables are insufficient. It helps reduce the need for additional extensions.
The cable is designed for environments involving oils and coolants. High IP protection helps protect against dust and moisture. FKM sealing supports reliable connector protection. The construction is suitable for demanding machine applications.
EVC218 supports drag-chain installation. More than 5 million bending cycles support repeated cable movement. The minimum bending radius helps protect the cable during operation. This makes it suitable for automated machinery.
2 m cable length
M12-to-M8 connection
3-pole configuration
Straight connectors
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Factory automation
Machine tools
Actuator connections
Production machinery
Conveyor systems
Control equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF030MSS0002H03STGH030MSS |
| Cable Length | 2 m |
| Connector A | M12 plug |
| Connector B | M8 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
