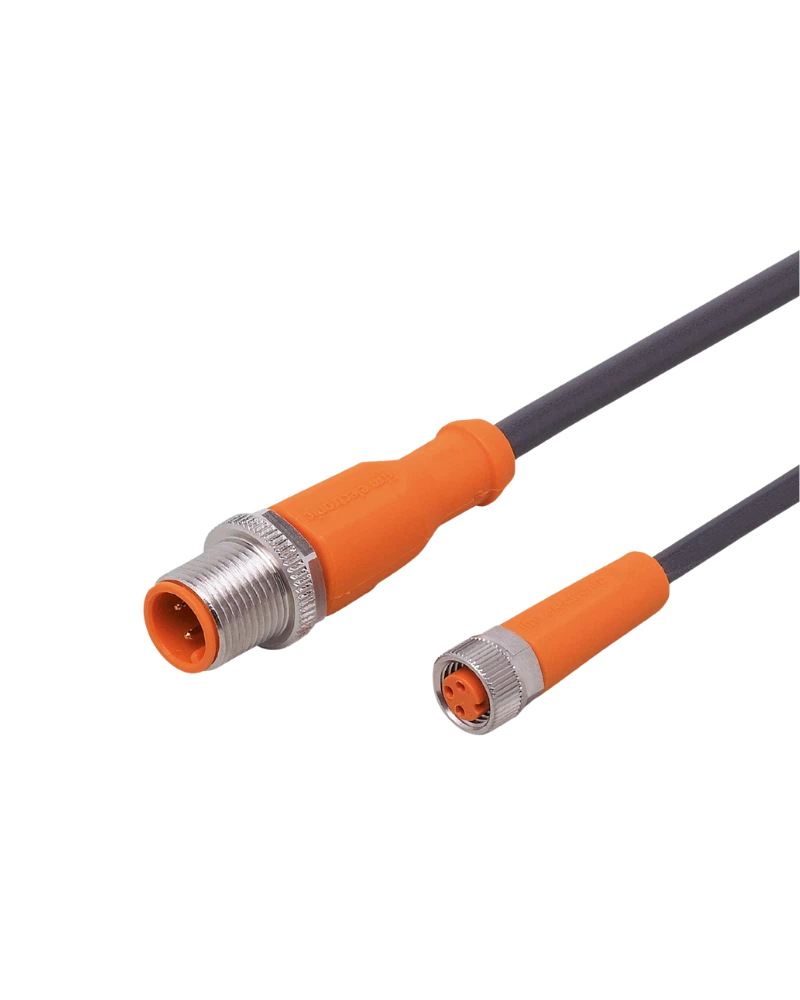

EVC217 is a 1 m M12-to-M8 connection cable designed for industrial automation and sensor connectivity. Its 3-pole configuration provides reliable connectivity between compatible devices. Gold-plated contacts and PUR halogen-free cable construction support dependable industrial performance. The cable is suitable for harsh and dynamic machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC217 provides a 3-pole connection between M12 and M8 interfaces. The standardized connectors simplify industrial installation. Gold-plated contacts support reliable signal transmission. Secure locking provides stable machine connectivity.
The 1 m cable provides practical routing for nearby sensors and automation components. PUR construction provides flexibility and mechanical strength. The compact length helps maintain organized machine wiring. It is suitable for sensor-level connections.
The cable is designed for demanding industrial environments. High IP protection helps protect against dust and moisture. Oil and coolant resistance supports machine-tool installations. The robust connector construction supports vibration and shock resistance.
EVC217 is suitable for drag-chain applications. Repeated bending is supported by the flexible cable construction. The recommended bending radius helps reduce mechanical stress. This makes it suitable for automated production equipment.
1 m cable length
M12-to-M8 connection
3-pole configuration
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
Oil and coolant resistant
High IP protection
Drag-chain suitable
Vibration resistant
Shock resistant
Industrial automation
Machine tools
Industrial sensors
Actuator systems
Production equipment
Conveyor systems
Control equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF030MSS0001H03STGH030MSS |
| Cable Length | 1 m |
| Connector A | M12 plug |
| Connector B | M8 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
