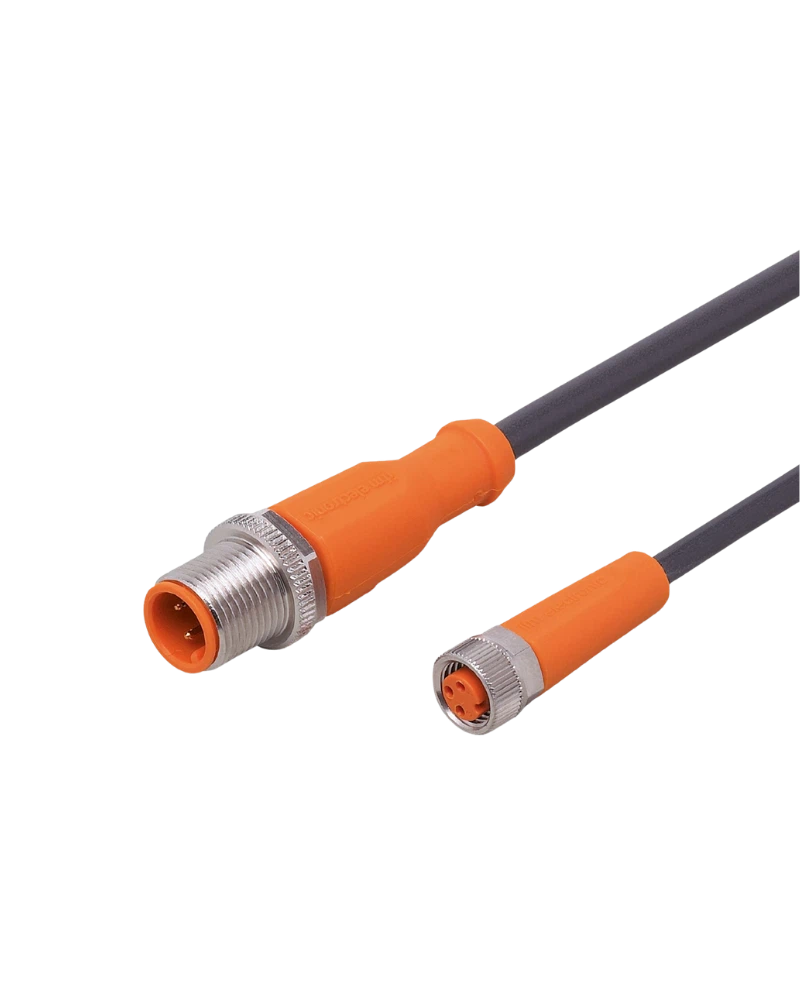

EVC215 is a compact 0.3 m M12-to-M8 connection cable for industrial automation applications. It uses a 3-pole M12 plug and M8 socket with gold-plated contacts. The PUR halogen-free cable is designed for reliable industrial operation. Its high protection and dynamic-use characteristics make it suitable for sensors and compact machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC215 provides a short connection between M12 and M8 industrial devices. The 3-pole design supports compact sensor and actuator connections. Gold-plated contacts help provide dependable electrical transmission. The connector arrangement simplifies machine-level wiring.
The 0.3 m cable minimizes excess wiring around compact equipment. PUR construction provides flexibility for machine installation. The short length is useful for closely positioned components. It supports clean and organized automation wiring.
The cable is designed for harsh industrial environments. It is resistant to oils and coolants. High protection ratings help protect the connection against environmental exposure. The robust connector construction supports reliable operation.
EVC215 is suitable for drag-chain applications. Its flexible cable construction supports repeated movement. The product family is designed for high bending-cycle performance. This makes it suitable for automated machinery.
0.3 m cable length
M12-to-M8 connection
3-pole configuration
Gold-plated contacts
PUR cable
Halogen-free
Oil and coolant resistant
High IP protection
Drag-chain suitable
Compact installation
Vibration resistant
Shock resistant
Industrial sensors
Compact automation
Machine tools
Sensor connections
Actuator systems
Factory automation
Control equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGF030MSS00,3H03STGH030MSS |
| Cable Length | 0.3 m |
| Connector A | M12 plug |
| Connector B | M8 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
