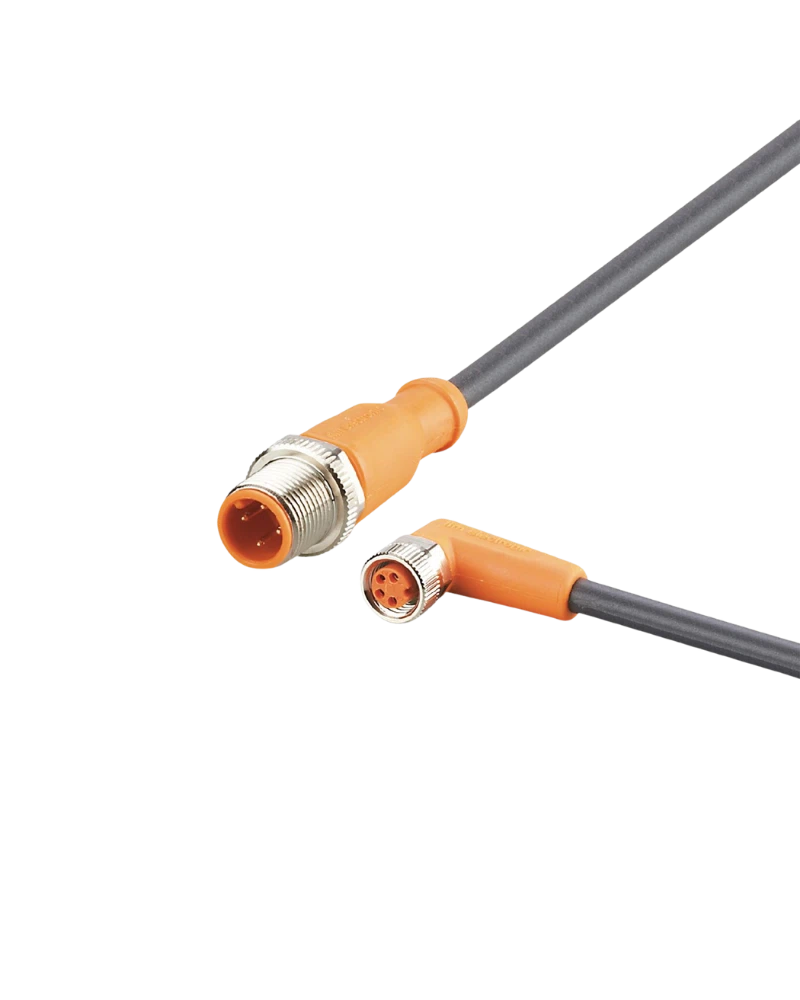

EVC213 is a 2 m M12-to-M8 connection cable designed for industrial sensor and automation connectivity. Its 3-pole configuration provides a compact connection between compatible M12 and M8 devices. Gold-plated contacts and PUR halogen-free cable construction provide dependable performance. High environmental protection makes it suitable for demanding factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC213 provides a standardized interface between M12 and M8 devices. The 3-pole design is suitable for compact sensors and actuators. Gold-plated contacts support stable signal transmission. Secure locking provides reliable machine connectivity.
The 2 m cable provides additional routing flexibility compared with shorter variants. It is suitable for connections across nearby machine components. PUR construction supports flexible cable installation. The cable helps maintain organized automation wiring.
The cable is designed for industrial applications involving vibration and environmental exposure. The connector construction provides reliable sealing. Resistance to oils and coolants makes it suitable for machine-tool environments. The robust PUR cable supports continuous operation.
Drag-chain suitability allows use in moving machinery. The cable is designed for repeated bending. High bending-cycle capability helps support long service life. Proper cable routing and bending radius further protect the connection.
2 m cable length
M12-to-M8 connection
3-pole design
Gold-plated contacts
PUR cable
Halogen-free
Oil and coolant resistant
High IP protection
Drag-chain suitable
Vibration resistant
Shock resistant
Reliable machine connectivity
Industrial automation
Machine tools
Industrial sensors
Actuator connections
Production machinery
Conveyor systems
Control equipment
Dynamic machine systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAF040MSS0002H03STGH030MSS |
| Cable Length | 2 m |
| Connector A | M12 plug |
| Connector B | M8 socket |
| M12 Design | Straight |
| M8 Design | Angled |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Maximum Current | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
