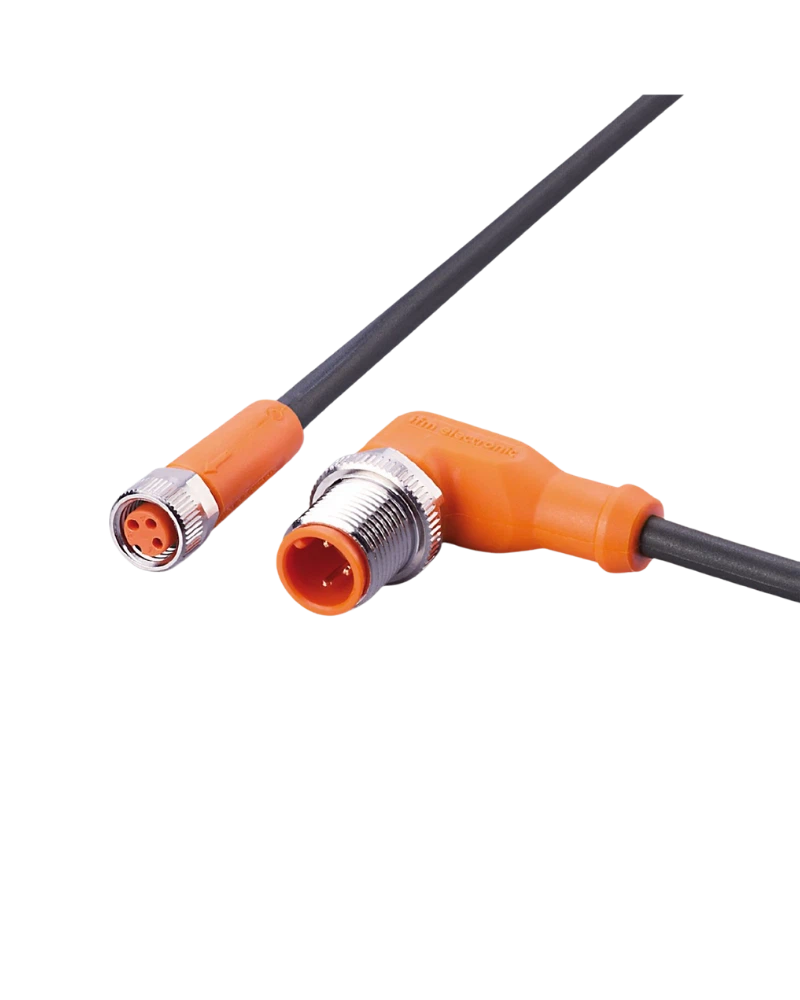

EVC211 is a 0.6 m M12-to-M8 connection cable designed for compact industrial sensor and actuator applications. It uses a 3-pole configuration with a straight M12 plug and M8 connection. The cable uses halogen-free PUR construction with gold-plated contacts. IP65/IP67/IP68/IP69K protection supports demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC211 provides an M12-to-M8 connection for compatible industrial devices. The 3-pole design supports compact sensor and actuator connections. The straight M12 connector provides simple installation. Gold-plated contacts provide reliable electrical transmission.
The 0.6 m cable length is suitable for short machine-level connections. It helps reduce unnecessary cable loops and excess wiring. The PUR jacket provides flexibility and durability. The compact cable is useful in space-constrained installations.
EVC211 operates in a low-voltage industrial connection class. The cable supports less than 50 V AC and less than 60 V DC. The 3-pole configuration is suitable for compact signal connections. Gold-plated contacts help maintain reliable connectivity.
IP65, IP67, IP68 and IP69K protection supports harsh industrial environments. The cable is designed for factory automation and machine-tool applications. It is suitable for environments involving coolants and lubricants. Drag-chain suitability supports repeated movement.
0.6 m cable length
M12-to-M8 connection
3-pole configuration
Straight M12 plug
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
<50 V AC
<60 V DC
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
M8 sensor connections
M12-to-M8 interfaces
Factory automation
Machine tools
Compact machinery
Control equipment
Dynamic automation
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAF040MSS00,6H03STGH030MSS |
| Cable Length | 0.6 m |
| Connector | M12 / M8 |
| Configuration | M12 plug to M8 connection |
| Coding | A-coded |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Protection Class | III |
| Current Rating | Product-specific / verify datasheet |
| Operating Temperature | -25°C to +90°C |
| cULus Temperature | Max. 75°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 44.3 g |
| Pack Quantity | 1 pc |
