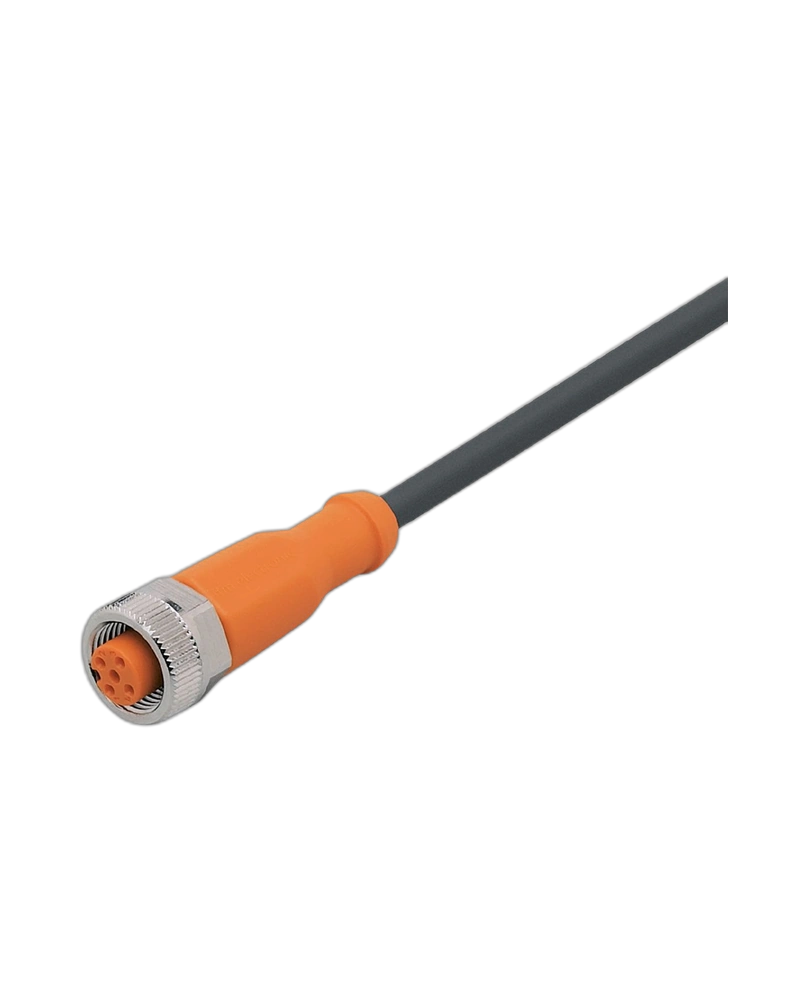

EVC207 is a 5.8 m M12 connecting cable with a straight 4-pole socket for industrial sensors. It uses gold-plated contacts and a halogen-free PUR cable for reliable industrial connectivity. The cable supports up to 250 V AC and 300 V DC with a 4 A current rating. High IP protection and drag-chain suitability support demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC207 provides a straight M12 socket designed for compatible industrial sensors. Its 4-pole configuration supports standard sensor signal connections. Gold-plated contacts provide dependable electrical performance. The connector design allows secure industrial installation.
The 5.8 m cable provides flexible routing between sensors and control equipment. The PUR cable provides a durable industrial connection. Its black outer jacket is suitable for machine environments. The cable length helps simplify installations where short cables are insufficient.
EVC207 supports up to 250 V AC and 300 V DC. Its 4 A current rating supports a wide range of industrial sensor applications. Gold-plated contacts help maintain reliable signal transmission. This makes the cable suitable for automation equipment requiring robust electrical connectivity.
IP65, IP67, IP68 and IP69K protection supports demanding industrial conditions. The cable is resistant to oils and coolants. Drag-chain suitability supports repeated cable movement. More than 5 million bending cycles provide long-term mechanical durability.
5.8 m cable length
M12 socket
4-pole connection
Straight connector
Gold-plated contacts
PUR cable
Halogen-free
250 V AC
300 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
Industrial sensors
Factory automation
Machine tools
Sensor connections
Control equipment
Production machinery
Conveyor systems
Automation systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGH040MSS05,8H04 |
| Cable Length | 5.8 m |
| Connector | M12 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 4 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
