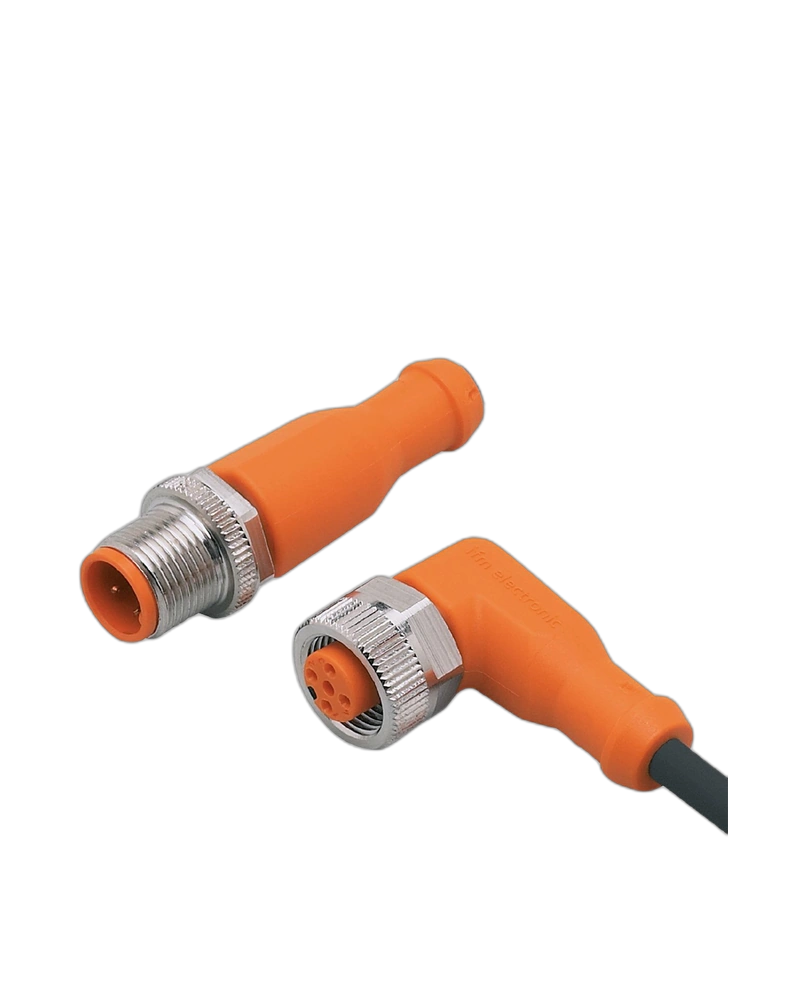

EVC205 is a compact 0.8 m M12 connection cable designed for sensor and actuator connections in industrial automation. It uses a 5-pole M12 plug-to-socket configuration with straight and angled connector orientation. Gold-plated contacts and PUR cable construction provide reliable performance. IP65/IP67/IP68/IP69K protection supports demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC205 is designed for short-distance connections between compatible industrial devices. The compact 0.8 m length helps reduce excess cable in machines. The 5-pole M12 configuration supports multiple signals. Straight and angled connector orientations provide flexible installation.
Gold-plated contacts provide dependable electrical transmission. The M12 connectors provide secure industrial coupling. The cable supports AC/DC industrial applications. Its robust construction is suitable for continuous machine operation.
The cable is resistant to oils and coolants. IP65, IP67, IP68 and IP69K protection supports harsh industrial environments. TPU connector bodies and FKM sealing provide additional protection. Vibration and shock resistance support machine applications.
EVC205 is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This provides reliable performance where repeated cable movement occurs.
0.8 m cable length
5-pole M12 plug-to-socket
Straight / angled configuration
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Actuators
Machine tools
Factory automation
Control equipment
Sensor networks
Dynamic machinery
Compact machine installations
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH050MSS00,8H05STGH050MSS |
| Cable Length | 0.8 m |
| Connector | M12 plug / M12 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A-coded |
| Contacts | 5 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Cable Colour | Black |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
