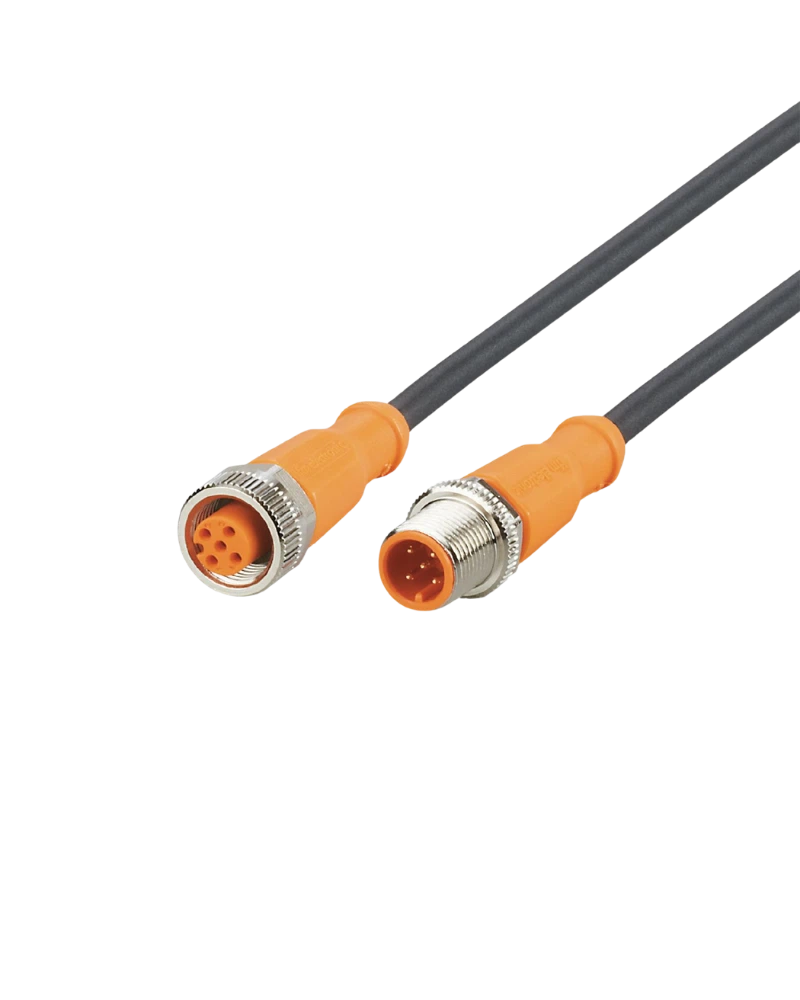

EVC204 is a 40 m M12 connection cable designed for extended industrial automation installations. The 5-pole plug-to-socket configuration provides multi-signal connectivity between compatible devices. Gold-plated contacts and PUR cable construction support reliable industrial operation. Its robust construction makes it suitable for large machinery and production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC204 provides an extended 40 m connection for large machines and production systems. The 5-pole M12 interface supports multiple signal paths. Plug-to-socket connectivity simplifies field installation. The long cable length helps connect equipment across larger machine layouts.
The cable uses industrial-grade PUR material. Its halogen-free construction supports demanding installation environments. The connector body provides mechanical protection. Gold-plated contacts provide reliable electrical connection.
The cable is designed for industrial environments exposed to dust, moisture and contaminants. Sealed M12 connectors help maintain connection integrity. It is suitable for machine-tool environments involving oils and coolants. The robust construction supports continuous operation.
The cable can be routed through automated machinery where movement is required. Drag-chain suitability supports repeated motion. Proper bending radius helps reduce mechanical stress. It is suitable for large automated production systems.
40 m cable length
5-pole M12 connection
Plug-to-socket design
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
High IP protection
Oil and coolant resistant
Drag-chain suitable
Long-distance machine connectivity
Large industrial machines
Factory automation
Machine tools
Production systems
Industrial sensors
Actuator networks
Conveyor systems
Automation control equipment
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH050MSS0040H05STGH050MSS |
| Cable Length | 40 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 5 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC/DC class |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
