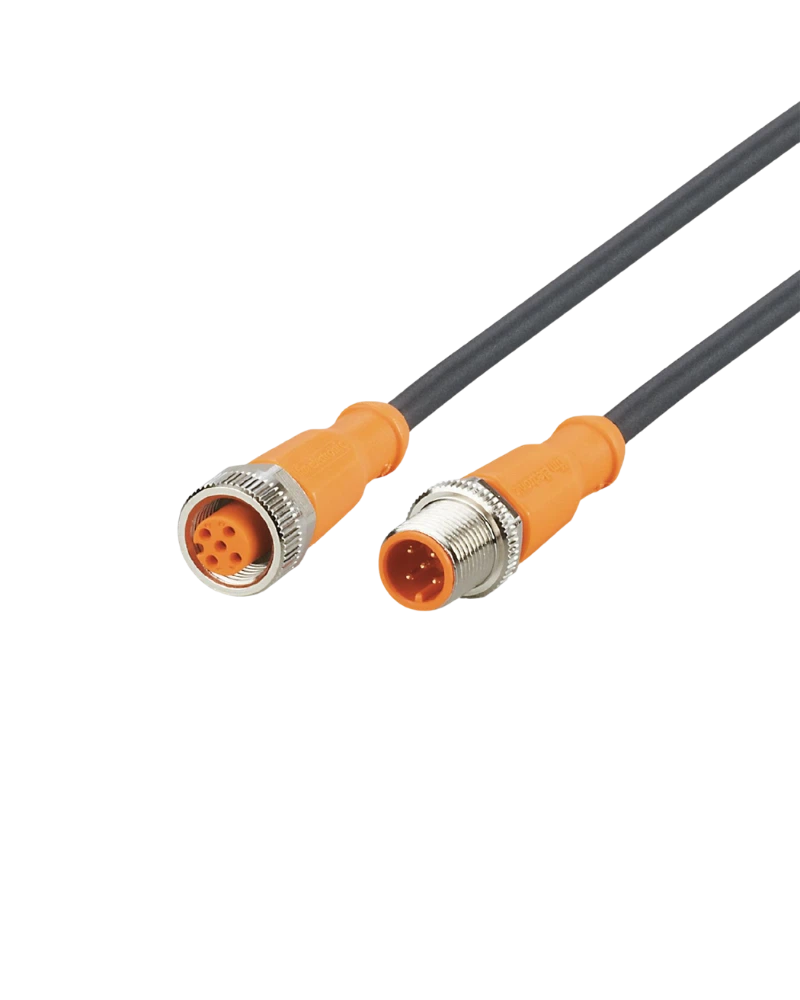

EVC203 is a 35 m M12 connection cable intended for long-distance industrial automation connections. Its 5-pole M12 plug-to-socket configuration supports multiple signal connections. Gold-plated contacts and PUR cable construction provide reliable industrial performance. The cable is suitable for demanding and dynamic machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 35 m cable provides extended routing between field devices and control equipment. The M12 interface offers a standardized industrial connection. Five contacts support multiple electrical signals. It is suitable for large production systems and machine installations.
Gold-plated contacts help provide stable electrical transmission. The plug-to-socket arrangement allows direct connection between compatible devices. The robust connector construction supports repeated industrial use. This helps reduce connection-related interruptions.
The PUR cable is designed for demanding industrial environments. The halogen-free construction provides a durable cable solution. The sealed connector protects the electrical interface from environmental contamination. It is suitable for applications involving oils and coolants.
EVC203 supports applications where cable movement occurs during machine operation. Drag-chain suitability helps protect the cable during repeated motion. The flexible construction supports machine routing. This makes it suitable for automated production equipment.
35 m cable length
5-pole M12 connection
Plug-to-socket configuration
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
High IP protection
Oil and coolant resistance
Drag-chain suitable
Flexible industrial routing
Factory automation
Machine tools
Sensor networks
Production lines
Actuator systems
Conveyor equipment
Industrial control systems
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH050MSS0035H05STGH050MSS |
| Cable Length | 35 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 5 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC/DC class |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
