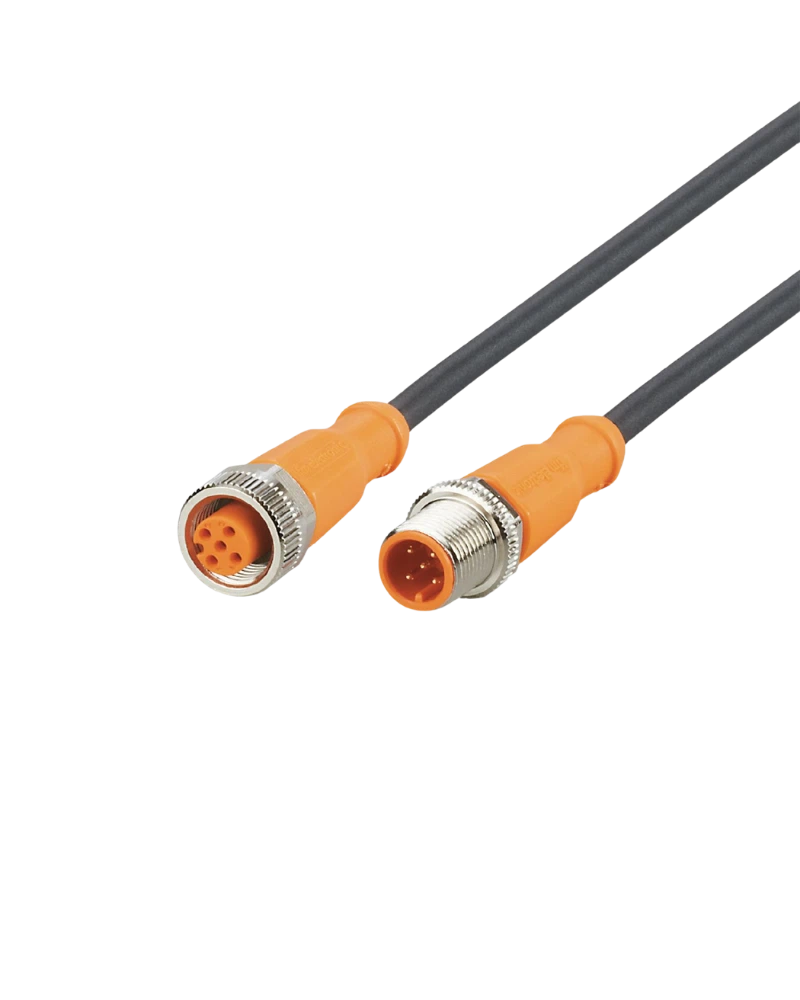

EVC202 is a 30 m M12 connection cable designed for extended industrial automation connectivity. It features a 5-pole M12 plug-to-socket configuration with gold-plated contacts. The PUR cable is halogen-free and silicone-free for demanding industrial environments. IP65/IP67/IP68/IP69K protection and drag-chain suitability support reliable machine operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC202 provides a long-distance connection between industrial sensors, actuators and automation equipment. The 5-pole M12 interface supports multiple signal connections. Gold-plated contacts help maintain reliable electrical transmission. The extended 30 m length is suitable for larger machine installations.
The cable uses a robust PUR outer jacket designed for industrial applications. Its halogen-free construction supports modern industrial installation requirements. The connector body provides mechanical protection against vibration and impact. The cable construction supports reliable continuous operation.
The connection cable is designed for demanding industrial environments. Its sealed M12 connection provides protection against dust and moisture. It is suitable for applications involving oils, coolants and lubricants. This makes it appropriate for machine tools and factory automation.
The cable is suitable for applications involving repeated cable movement. Drag-chain compatibility supports automated machinery. The minimum bending radius helps protect the cable during movement. This makes EVC202 suitable for moving production equipment.
30 m cable length
M12 plug-to-socket connection
5-pole A-coded configuration
Gold-plated contacts
PUR cable
Halogen-free construction
Silicone-free design
High IP protection
Oil and coolant resistant
Drag-chain suitable
High bending-cycle capability
Industrial automation
Machine tools
Industrial sensors
Actuator connections
Production machinery
Conveyor systems
Factory automation
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH050MSS0030H05STGH050MSS |
| Cable Length | 30 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 5 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Construction | 5 × 0.34 mm² |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC/DC class |
| Current Rating | 4 A |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
