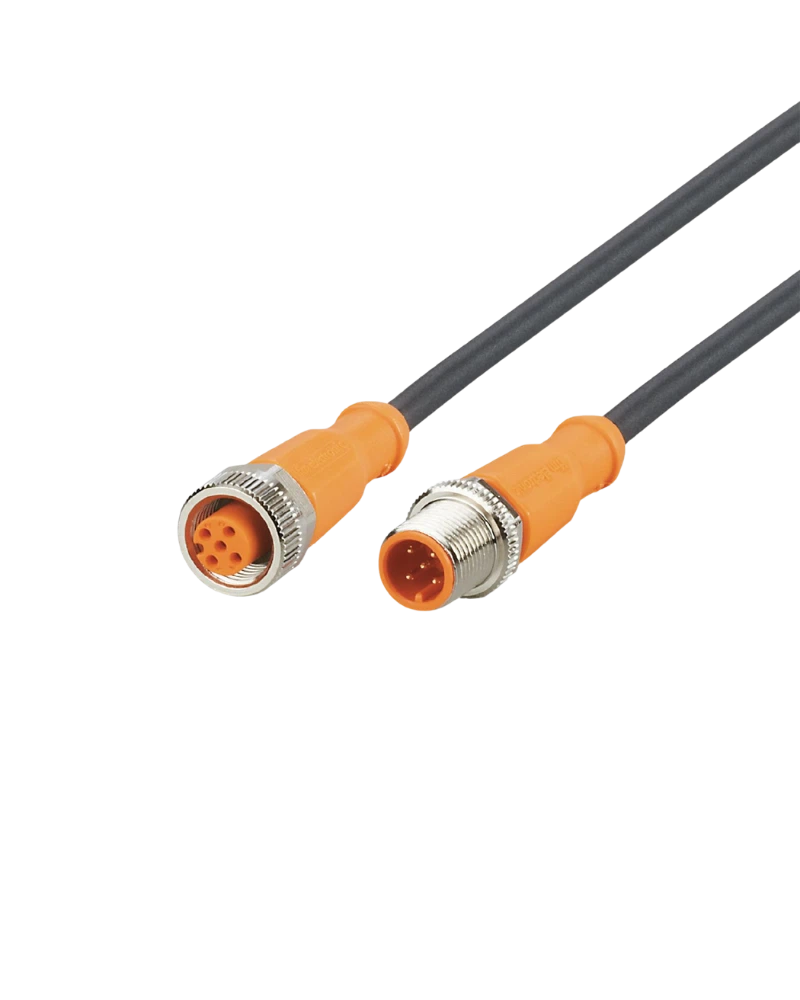

EVC201 is a 20 m M12 connection cable designed for long-distance industrial automation connectivity. It features straight M12 plug and socket connections with five gold-plated contacts and a halogen-free PUR cable. High IP protection provides dependable performance in harsh industrial environments. Drag-chain suitability makes it suitable for dynamic machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC201 provides a 20 m connection between industrial field devices and automation equipment. Straight M12 connectors simplify installation and cable routing. Five contacts support multiple electrical signals. Gold-plated contacts provide dependable electrical transmission.
The cable uses black PUR with 5 × 0.34 mm² conductors. The construction is halogen-free and silicone-free. TPU connector bodies provide mechanical protection. Brass, nickel-plated locking components and FKM sealing provide reliable connection integrity.
EVC201 provides IP65, IP67, IP68 and IP69K protection. It is intended for industrial applications including machine tools and environments involving coolants and lubricants. The sealed connector construction helps protect against dust and moisture.
The cable is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. Travel speed can reach up to 3.3 m/s under specified conditions.
20 m cable length
M12 plug-to-socket connection
5-pole A-coded configuration
Straight / straight design
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Machine tools
Industrial sensors
Actuator systems
Production lines
Conveyor systems
Control equipment
Large automation installations
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGH050MSS0020H05STGH050MSS |
| Cable Length | 20 m |
| Connector | M12 plug / M12 socket |
| Configuration | Straight / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 697.5 g |
| Pack Quantity | 1 pc |
